A-AUAF-3

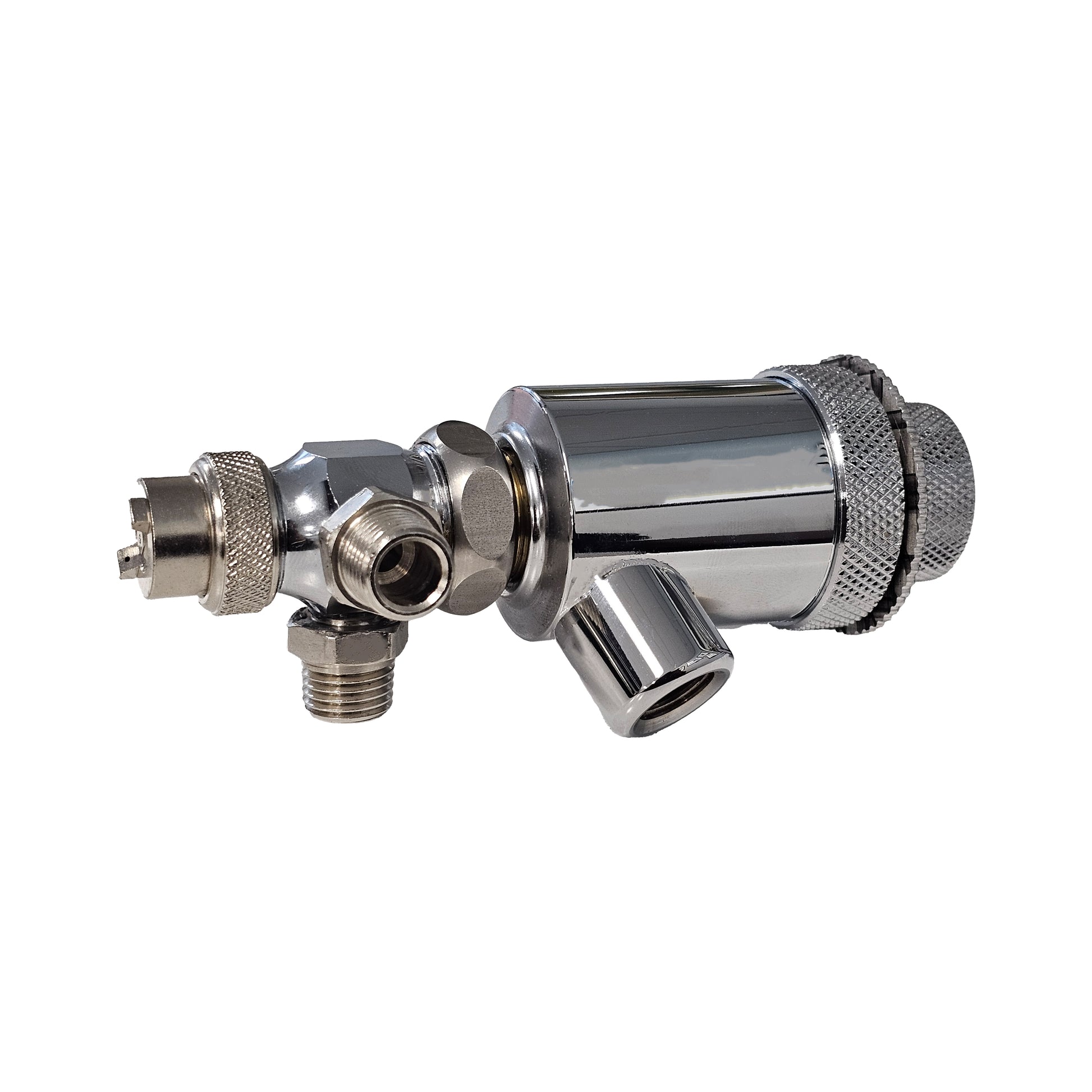

A-AUAF-3 Auto Spray Gun

Description:

The A-AUAF-3 Auto Spray Gun is designed for precision and versatility, delivering a fan spray pattern ranging from 2" to 6". It features separate ports for activation air and atomizing air, allowing for individual control of each function. The fluid tip and needle are constructed from stainless steel, making the gun suitable for use with both water-based and solvent-based materials. The spray gun is finished with chrome plating for enhanced durability and aesthetics.

Key Features:

• Individually controlled activation and atomizing air ports
• Stainless steel fluid tip and needle for compatibility with various materials
• Durable chrome-plated finish

Suggested Mounting Assembly:

Model: UM-20

Technical Specifications:

Specification       Details

Part Number        A-AUAF-3

Type                  Automatic Spray Gun

Head Size           0.046

Air Volume         3 CFM

Air Pressure       45–60 PSI

Air Inlet             1/4" NPT

Fluid Inlet           1/4" NPT

Spray Pattern     2" to 6"

Weight              1.45 lbs

Finish                Chrome Plated
