Collection: FABF (Walk in Booth)

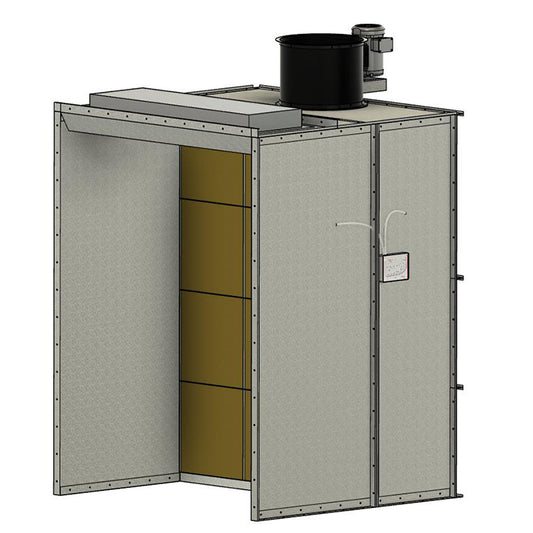

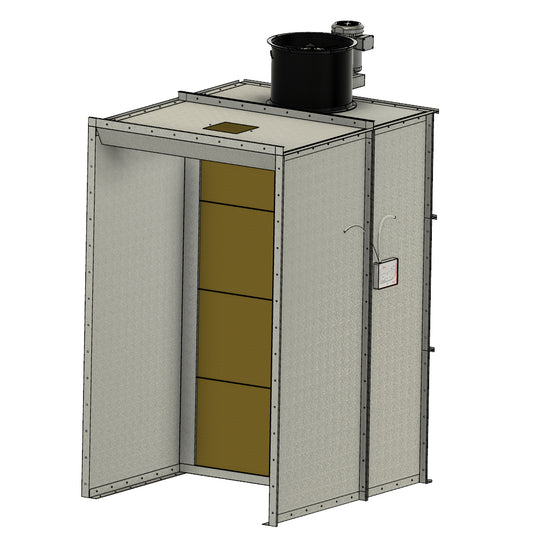

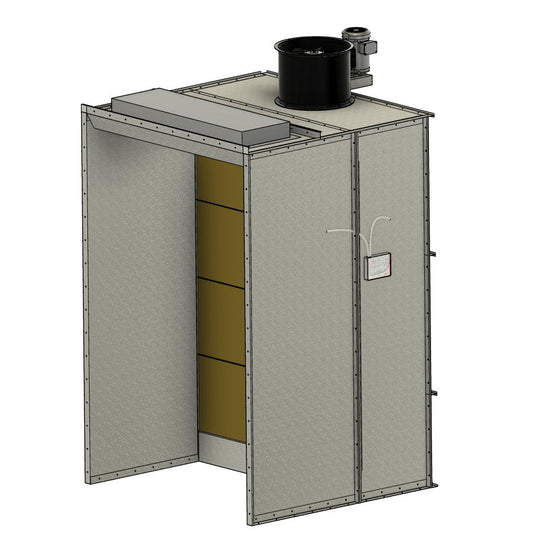

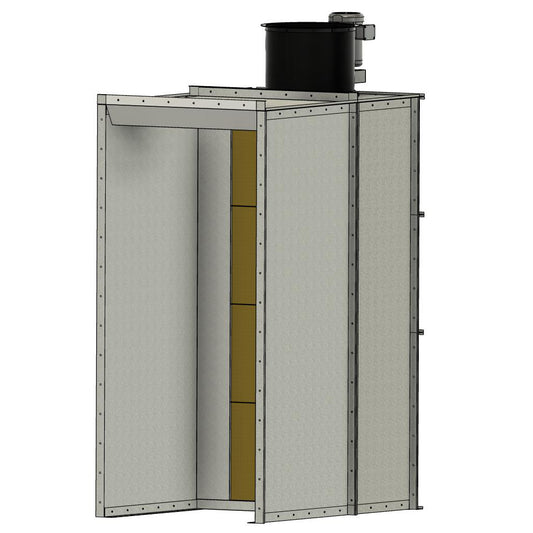

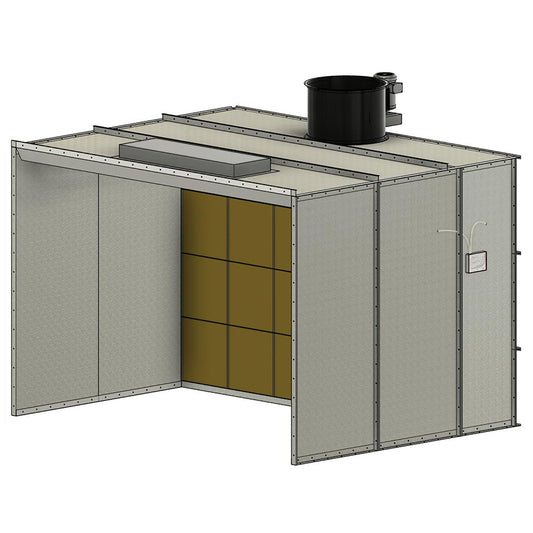

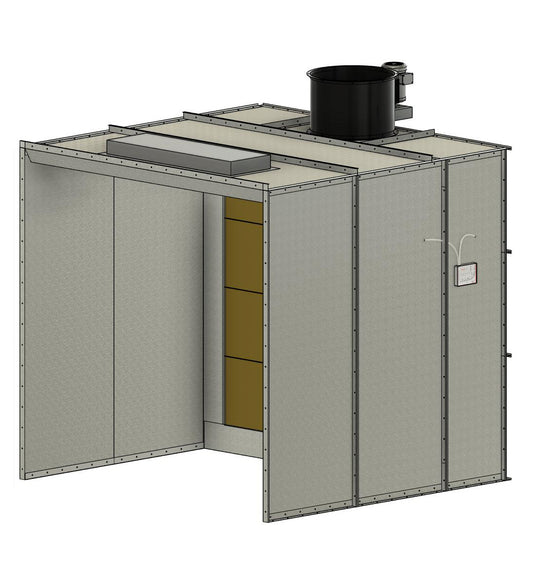

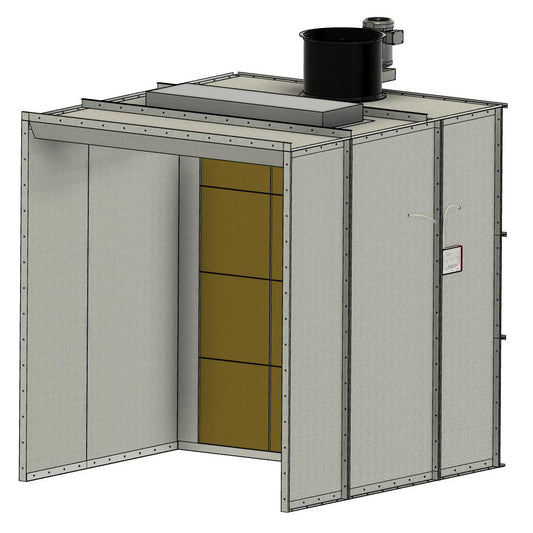

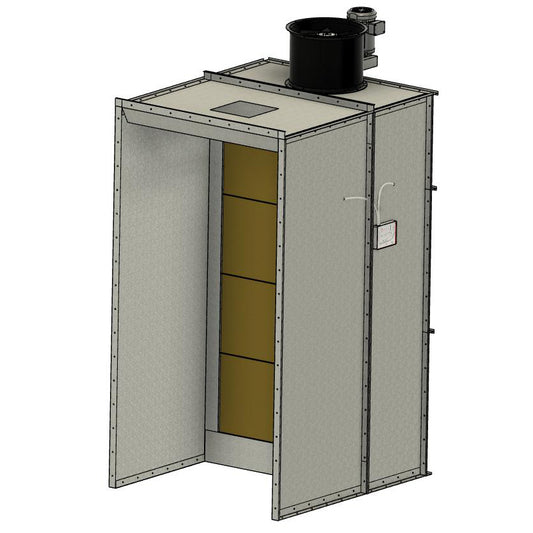

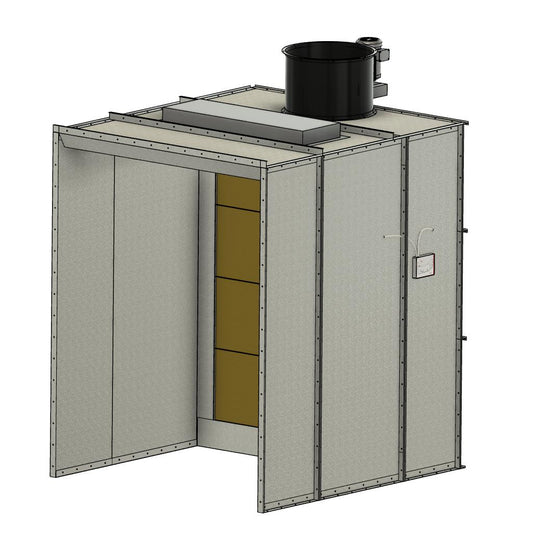

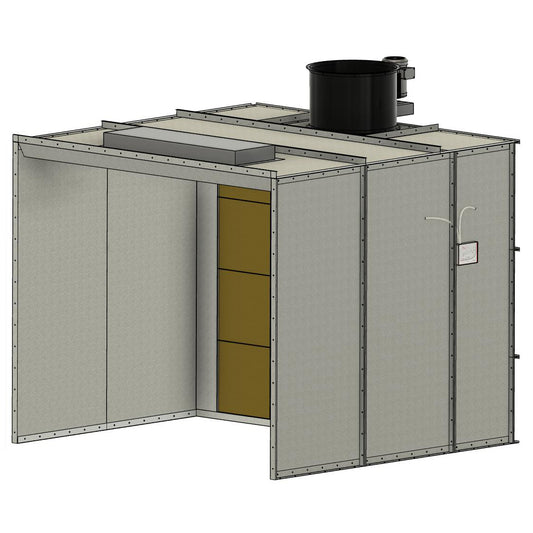

The Paasche FABF Spray Booth is a professional-grade walk-in containment system, featuring 18-gauge galvanized sheet steel panels, sparkless tube-axial fans, and full regulatory compliance.
Build and Construction:
18-gauge galvanized steel panels: Flanged on two sides with bolt holes spaced at 6-inch centers for simple and rigid structural assembly.
Modular sizes: Available in widths ranging from 3' to 10' and heights of 7 or 8' to match various workspace requirements.
Safety regulations: Fully conforms to OSHA, NFPA, EPA, and UFC standards when installed and maintained properly.
Sparkless fan blades: Heavy-gauge steel tube-axial design engineered to maximize air delivery.
V-belt drive system: Enclosed in a protective metal housing attached directly to the fan bearing assembly.
High CFM output: Delivers airflows from 3,365 CFM up to 9,475 CFM depending on the specific model size and motor configuration.
Totally enclosed motor: Available in single-phase (115/230V) or three-phase (230/460V) options.
Lighting: Class I, Division II certified light fixtures (LED for smaller units, 4-foot fluorescent for larger units).
Hardware and accessories: Includes a belt guard, draft gauge, initial set of paint filters, and complete assembly instructions.
