A-AUAR-1

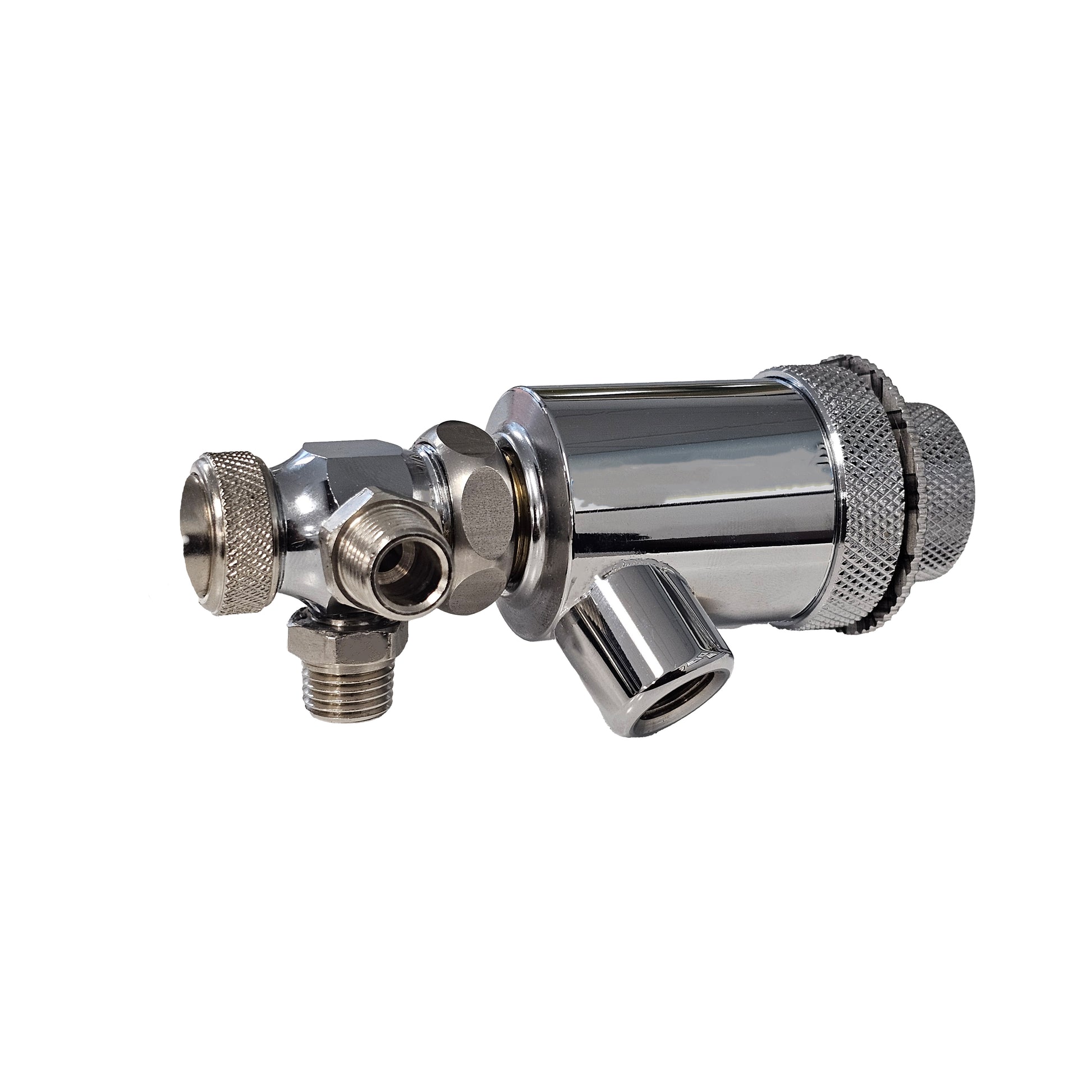

Product Name: A-AUAR-1 Auto Spray Gun

Description:

The A-AUAR-1 is an automatic spray gun engineered to deliver a precise round spray pattern ranging from 1/8" to 2". It features separate ports for activation air and atomizing air, allowing for individual control of each parameter. Both the fluid tip and needle are constructed from stainless steel, making the gun suitable for use with both water-based and solvent-based materials. The exterior is finished with a durable chrome plating.

Features:

• Individually controlled activation and atomizing air ports
• Stainless steel fluid tip and needle for compatibility with various materials
• Compact and durable design suitable for industrial applications

Suggested Mounting Assembly: UM-20

Technical Specifications:

Part Number: A-AUAR-1

Type: Automatic Spray Gun

Head Size: .028

Air Volume: 1.5 CFM

Air Pressure: 45–60 PSI

Air Inlet: 1/4" NPT

Fluid Inlet: 1/4" NPT

Spray Pattern: 1/8" to 2" (round)

Weight: 1.45 lbs

Finish: Chrome Plated
