A-AUDF-0

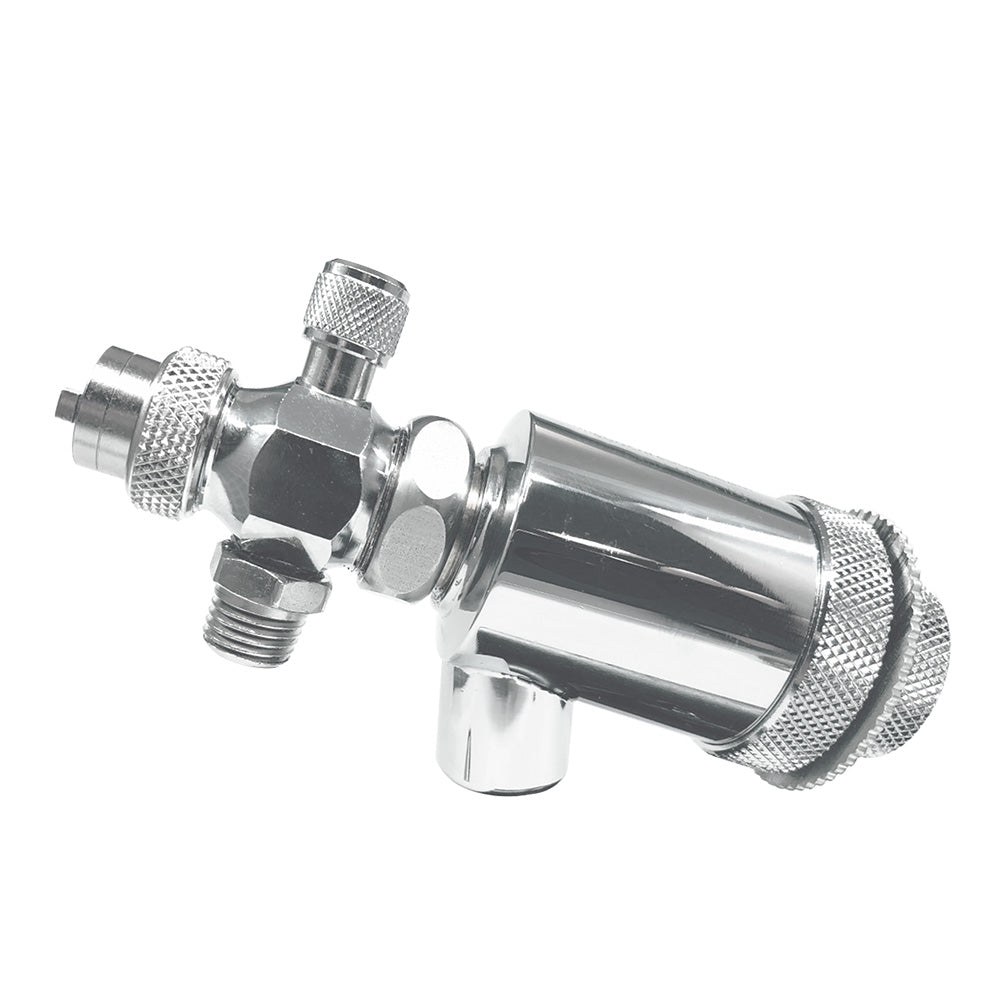

Product Overview: A-AUDF-0 Auto Spray Gun

The A-AUDF-0 is part of the A-AUD series of automatic spray guns, designed for efficient and precise application of various coatings. This model is equipped with a single fluid and air port, and features an atomizing air adjustment needle valve for fine-tuning the spray atomization. For applications requiring a separate atomizing port, it is recommended to consider the A-AUD series.

Key Features:

• Spray Pattern: Delivers a fan spray pattern ranging from 2" to 5", depending on the distance from the surface.
• Fluid Tip: The .021 fluid tip is optimized for thinner fluids.
• Air Requirements: Requires activation air pressure between 45-60 PSI, with an air volume of 1.0 CFM.
• Adjustment: Includes an atomizing dial control for precise spray adjustment.
• Material Compatibility: Both the fluid tip and needle are constructed from stainless steel, allowing compatibility with both water-based and solvent-based materials.
• Customizability: The head size can be adjusted by switching the AU- tip and ANFA- aircap to the appropriate matching size.
• Recommended Mounting: UM-20 mounting assembly is suggested for optimal installation.

Technical Specifications:

Part Number: A-AUDF-0

Type: Automatic Spray Gun

Head Size: .021

Air Volume: 1.0 CFM

Air Pressure: 45-60 PSI

Air Inlet: 1/4" NPT (Male)

Fluid Inlet: 1/4" NPT (Male)

Spray Pattern: 1/8" to 2"

Weight: 1.15 lbs

Finish: Chrome Plated
