A-AUDF-000

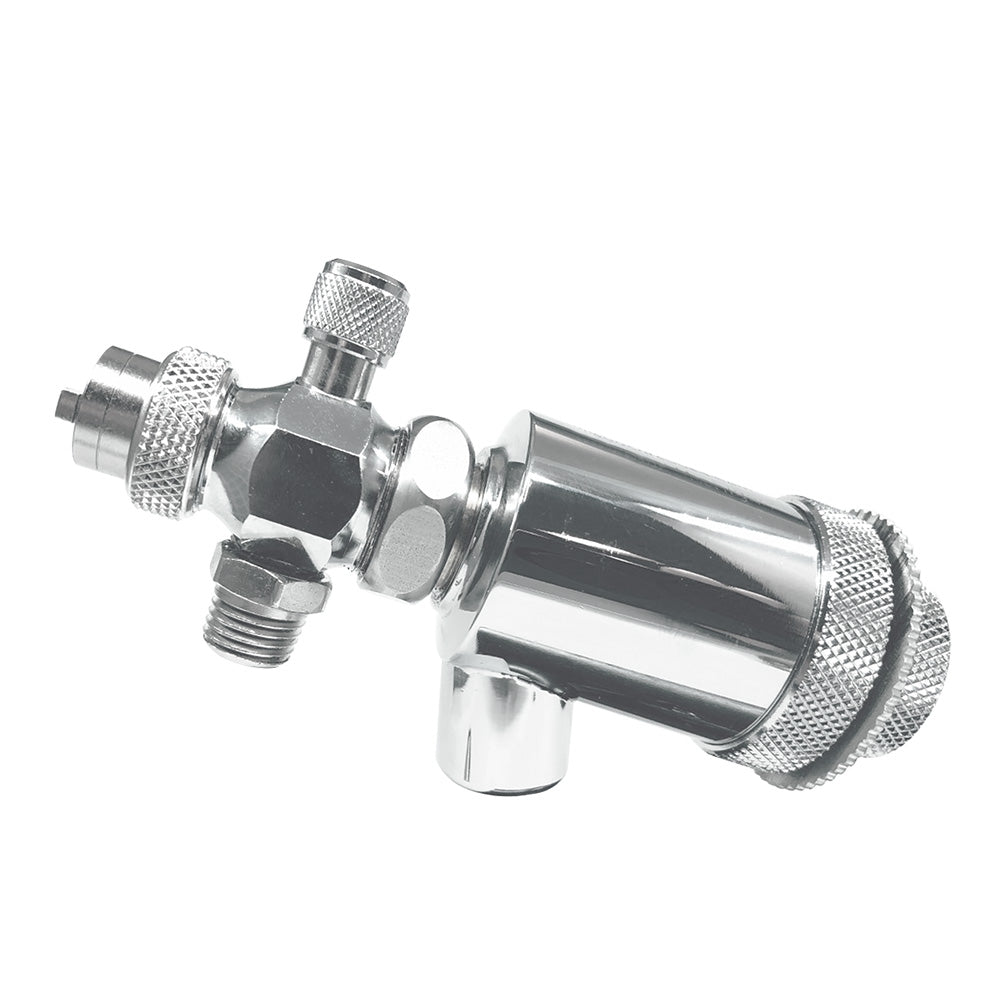

A-AUDF-000 Auto Spray Gun:
The A-AUD series spray gun has one fluid and one air port.  Atomizing air has an adjustment needle valve for fine tuning atomization.  If you want a separate atomizing port look at the A-AUD series.

  Delivers a fan spray pattern between 2" and 5" depending on distance from surface.
  The .014 fluid tip is for thinner fluids
  Required 45-60 PSI activation air.
  Atomizing dial control included.
  Both the fluid tip and needle are stainless steel allowing the use of water or solvent based materials.
  Heads size can be changed be switching the AU- tip and ANFA- aircap to matching size.

Recommended Mounting Assembly: UM-20

Specs:
Part Number:         A-AUDF-000
Type:                    Automatic Spray Gun
Head Size:            .014
Air Volume:          1.0 CFM
Air Pressure:         45-60 PSI
Air Inlet:               1/4" NPT (M)
Fluid Inlet:            1/4" NPT  (M)
Spray Pattern:       1/8"(more...)
