A-AUDF-2

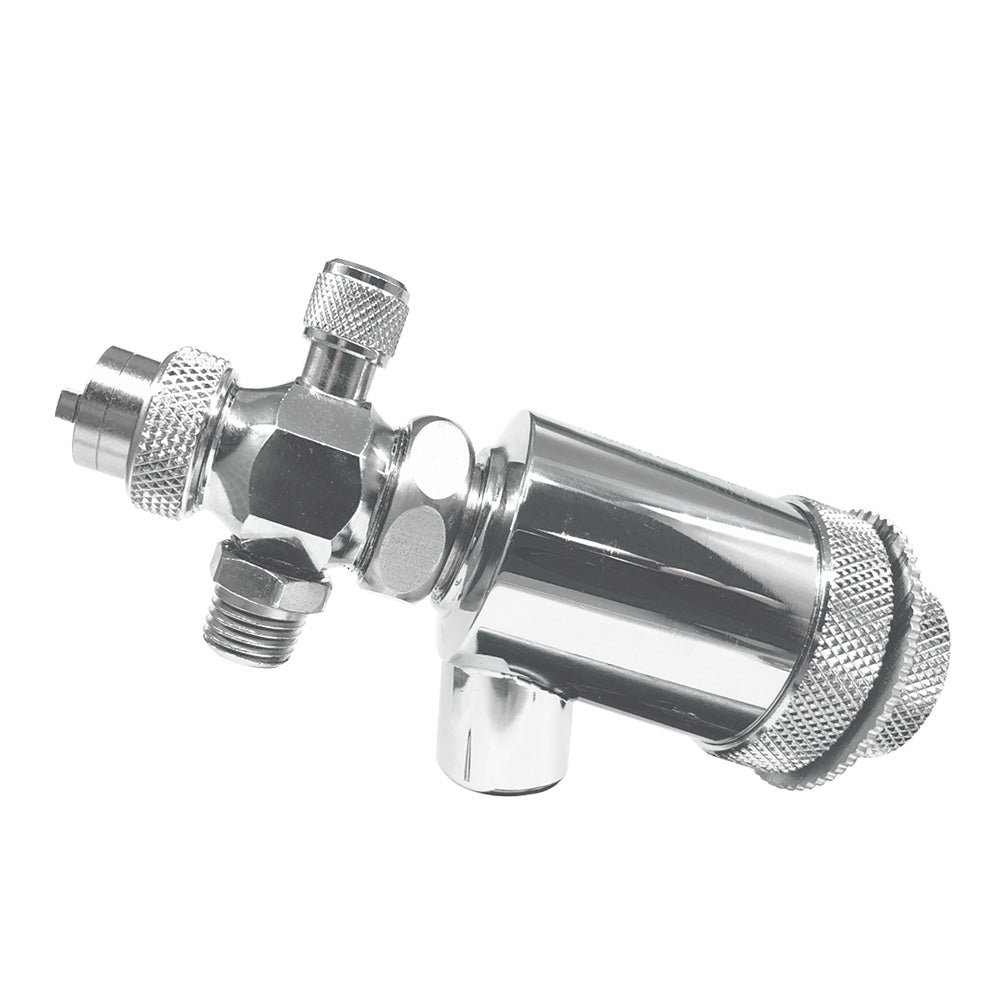

Product Overview: A-AUDF-2 Auto Spray Gun The A-AUDF is part of the A-AUD series of automatic spray guns, designed for efficient and precise application of various coatings. This model is equipped with a single fluid and air port, and features an atomizing air adjustment needle valve for fine-tuning the spray atomization. For applications requiring a separate atomizing port, it is recommended to consider the A-AUD series. Key Features: Spray Pattern: Delivers a fan spray pattern ranging from 2" to 5", depending on the distance from the surface. Fluid Tip: The .040 fluid tip is optimized for thinner fluids. Air Requirements: Requires activation air pressure between 45-60 PSI, with an air volume of 1.0 CFM. Adjustment: Includes an atomizing dial control for precise spray adjustment. Material Compatibility: Both the fluid tip and needle are constructed from stainless steel, allowing compatibility with both water-based and solvent-based materials. Customizability: The head size can be adjusted by switching the AU- tip and ANFA- aircap to the appropriate matching size. Recommended Mounting: UM-20 mounting assembly is suggested for optimal installation. Technical Specifications: Part Number: A-AUDF-2 Type: Automatic Spray Gun Head Size: .040 Air Volume: 2 CFM Air Pressure: 45-60 PSI Air Inlet: 1/4" NPT (Male) Fluid Inlet: 1/4" NPT (Male) Spray Pattern: 1/8" to 2" Weight: 1.15 lbs Finish: Chrome Plated
