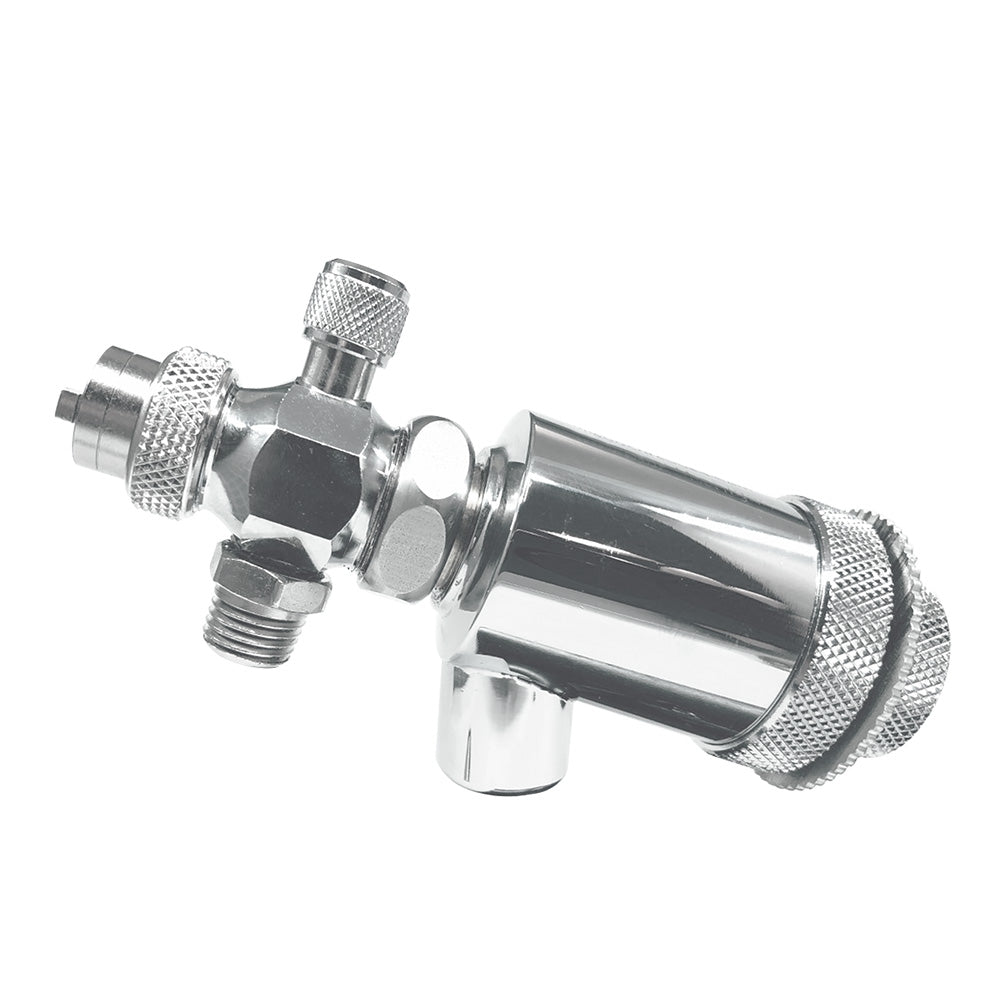

Product Overview: A-AUDF-3 Auto Spray Gun
The A-AUDF is part of the A-AUD series of automatic spray guns, designed for efficient and precise application of various coatings. This model is equipped with a single fluid and air port, and features an atomizing air adjustment needle valve for fine-tuning the spray atomization. For applications requiring a separate atomizing port, it is recommended to consider the A-AUD series.
Key Features:
Spray Pattern: Delivers a fan spray pattern ranging from 2" to 5", depending on the distance from the surface.
Fluid Tip: The .046 fluid tip is optimized for thinner fluids.
Air Requirements: Requires activation air pressure between 45-60 PSI, with an air volume of 1.0 CFM.
Adjustment: Includes an atomizing dial control for precise spray adjustment.
Material Compatibility: Both the fluid tip and needle are constructed from stainless steel, allowing compatibility with both water-based and solvent-based materials.
Customizability: The head size can be adjusted by switching the AU- tip and ANFA- aircap to the appropriate matching size.
Recommended Mounting: UM-20 mounting assembly is suggested for optimal installation.
Technical Specifications:
Part Number: A-AUDF-3
Type: Automatic Spray Gun
Head Size: .046
Air Volume: 2 CFM
Air Pressure: 45-60 PSI
Air Inlet: 1/4" NPT (Male)
Fluid Inlet: 1/4" NPT (Male)
Spray Pattern: 1/8" to 2"
Weight: 1.15 lbs
Finish: Chrome Plated
