A-AUDR-2

A-AUDR-2 Auto Spray Gun

Description:

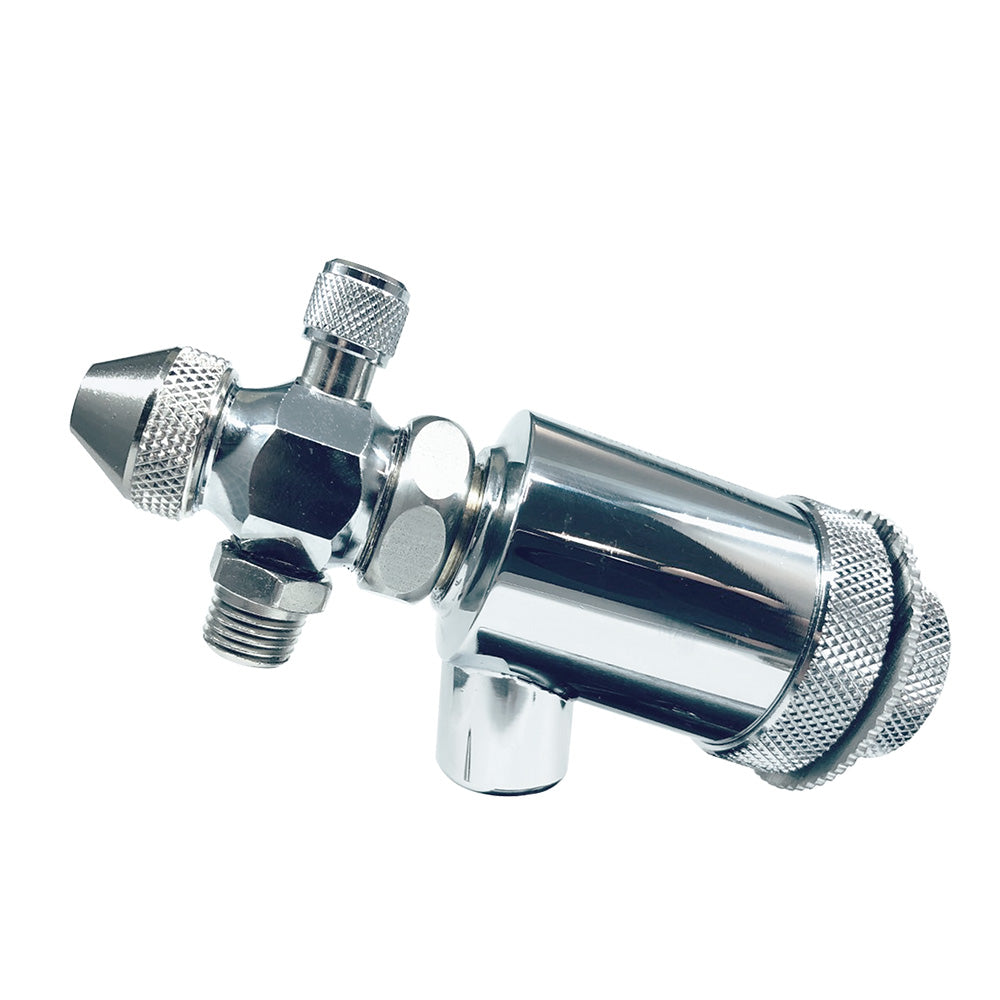

The A-AUDR Automatic Spray Gun is designed to deliver a precise round spray pattern ranging from 1/8" to 2". It features an atomizing air adjustment, allowing the operator to reduce atomizing air from the required 45-60 PSI activation air. Constructed with a stainless steel fluid tip and needle, this spray gun is compatible with both water-based and solvent-based materials, ensuring versatility and durability.

Key Features:

Adjustable atomizing air for optimal spray control.

Stainless steel fluid tip and needle for corrosion resistance and compatibility with various materials.

Chrome-plated finish for enhanced durability and ease of cleaning.

Lightweight design for ease of installation and operation.

Suggested Mounting Assembly:

UM-20

Technical Specifications:

Specification     Detail

Part Number     A-AUDR-2

Type    Automatic Spray Gun

Head Size         .040

Air Volume        1.5 CFM

Air Pressure     45-60 PSI

Air Inlet 1/4" NPT

Fluid Inlet         1/4" NPT

Spray Pattern    1/8" to 2"

Weight 1.45 lbs

Finish   Chrome Plated
