A-AUF-2

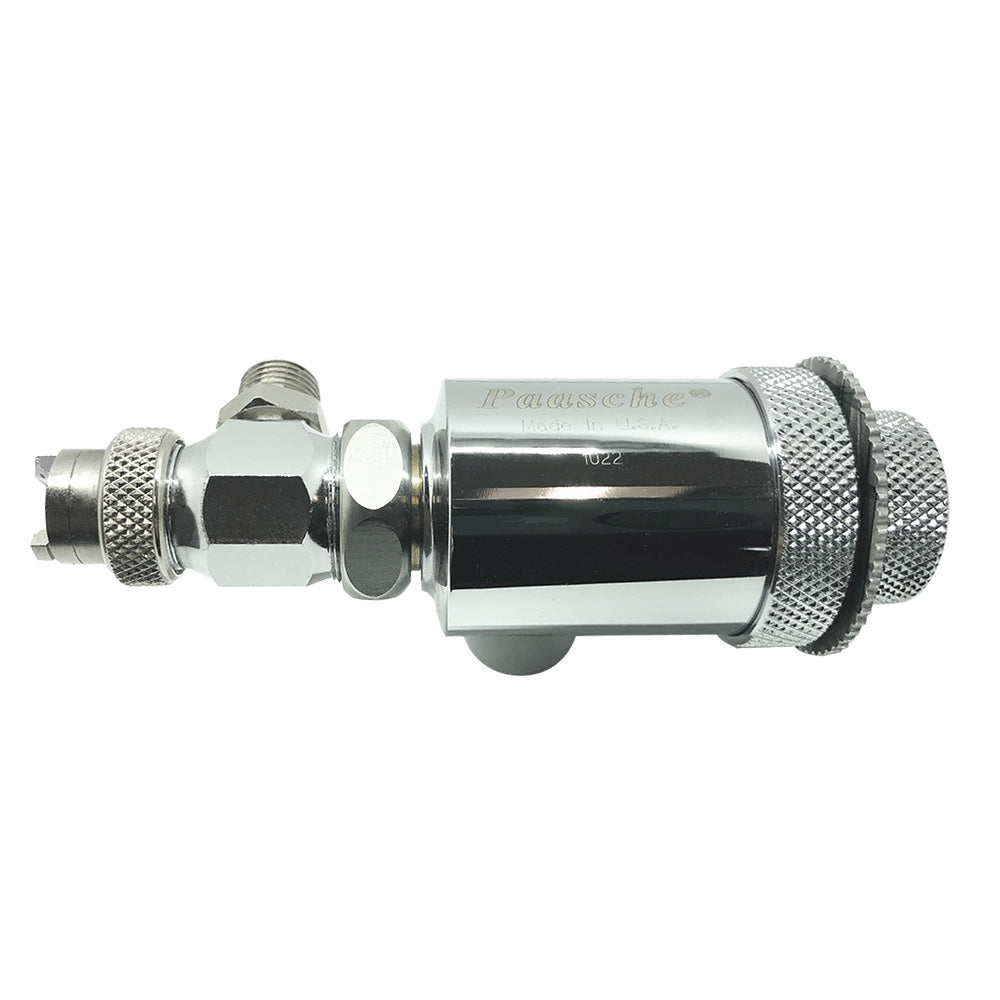

A-AUF-2 Auto Spray Gun

Description:

The A-AUF Automatic Spray Gun, part of the A-AU series, features a streamlined design with a single fluid and air port. Both activation and atomizing functions utilize the same air line, with a minimum activation pressure requirement of 45 PSI. For enhanced atomizing control below this pressure, consider the A-AUAF and A-AUDF models. This spray gun delivers a fan spray pattern ranging from 2" to 5", making it suitable for applications requiring broader coverage. The fluid tip is specifically designed for thinner fluids, and the stainless steel construction of both the fluid tip and needle ensures compatibility with water-based and solvent-based materials. The spray head size can be easily modified by replacing the AU-tip and ANFA-aircap with matching sizes.

Key Features:

• Shared air line for activation and atomizing.
• Adjustable spray pattern (fan type) from 2" to 5".
• .040 fluid tip suitable for thinner fluids.
• Stainless steel fluid tip and needle for durability and compatibility with various materials.
• Easy head size modification via interchangeable tips and aircaps.
• Chrome-plated finish for enhanced longevity and ease of cleaning.
• Lightweight design for convenient installation and operation.

Recommended Mounting Assembly:

UM-20

Technical Specifications:

Specification     Detail

Part Number     A-AUF-2

Type    Automatic Spray Gun

Head Size         .040

Air Volume        1.0 CFM

Air Pressure     45-60 PSI

Air Inlet 1/4" NPT (M)

Fluid Inlet         1/4" NPT (M)

Spray Pattern    2" to 5"

Weight 1.15 lbs

Finish   Chrome Plated
