A-AUR-0

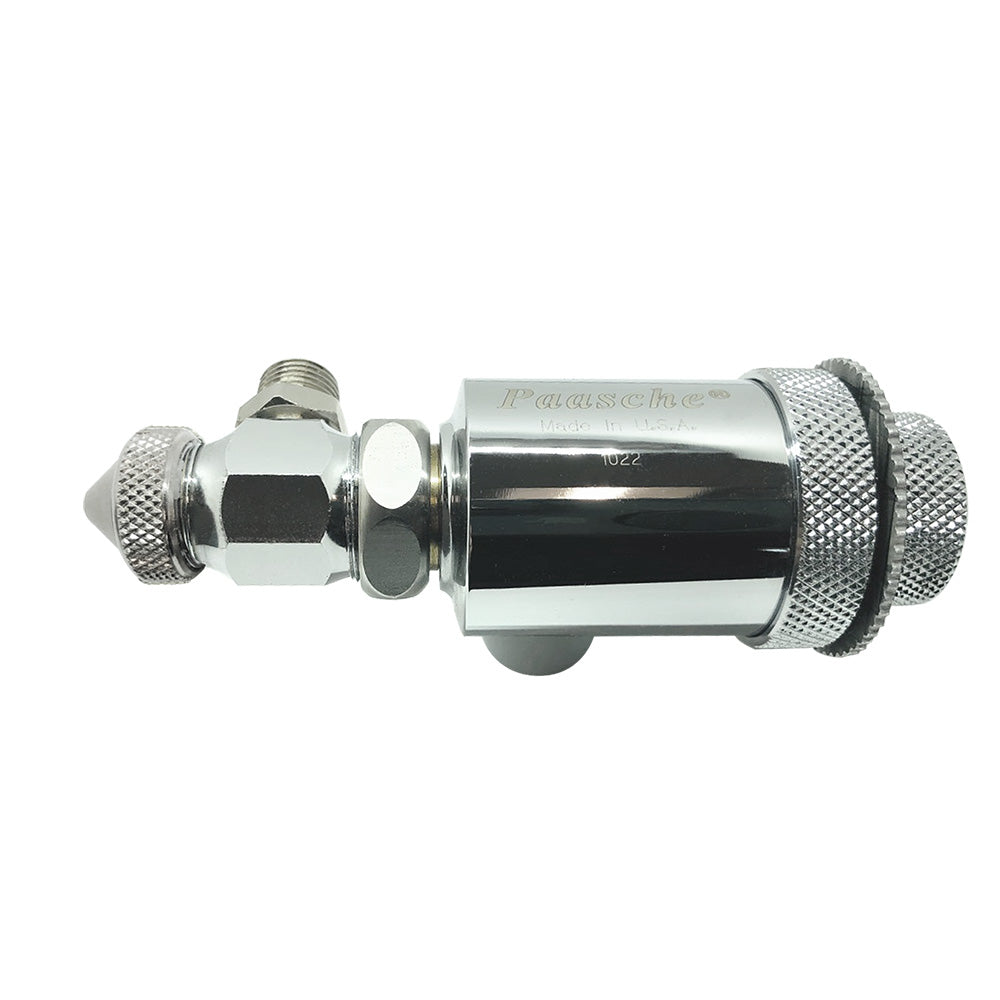

A-AUR-0 Auto Spray Gun

Description:

The A-AUR Automatic Spray Gun is part of the A-AU series, designed with a single fluid and air port. Both activation and atomizing utilize the same air line, with a minimum required activation pressure of 45 PSI. For users who require atomizing control below this pressure, the A-AUAR and A-AUDR models are recommended. This model delivers a precise round spray pattern ranging from 1/8" to 2", ideal for applications needing fine, controlled coverage. The fluid tip is engineered for thinner fluids, and both the fluid tip and needle are constructed from stainless steel, making the unit compatible with both water-based and solvent-based materials. The head size can be changed easily by switching the AU-tip and AR-15 aircap to a matching size.

Key Features:

• Shared air line for both activation and atomizing functions.
• Delivers a round spray pattern adjustable from 1/8" to 2".
• .021 fluid tip suitable for thinner fluids.
• Stainless steel fluid tip and needle for durability and chemical compatibility.
• Easily changeable head size via interchangeable tips and aircaps.
• Chrome-plated finish for enhanced corrosion resistance and ease of maintenance.
• Lightweight and robust design for convenient installation and operation.

Recommended Mounting Assembly:

UM-20

Technical Specifications:

Specification     Detail

Part Number     A-AUR-0

Type    Automatic Spray Gun

Head Size         .021

Air Volume        1.0 CFM

Air Pressure     45-60 PSI

Air Inlet 1/4" NPT (M)

Fluid Inlet         1/4" NPT (M)

Spray Pattern    1/8" to 2" (Round)

Weight 1.15 lbs

Finish   Chrome Plated
