A-AUR-3

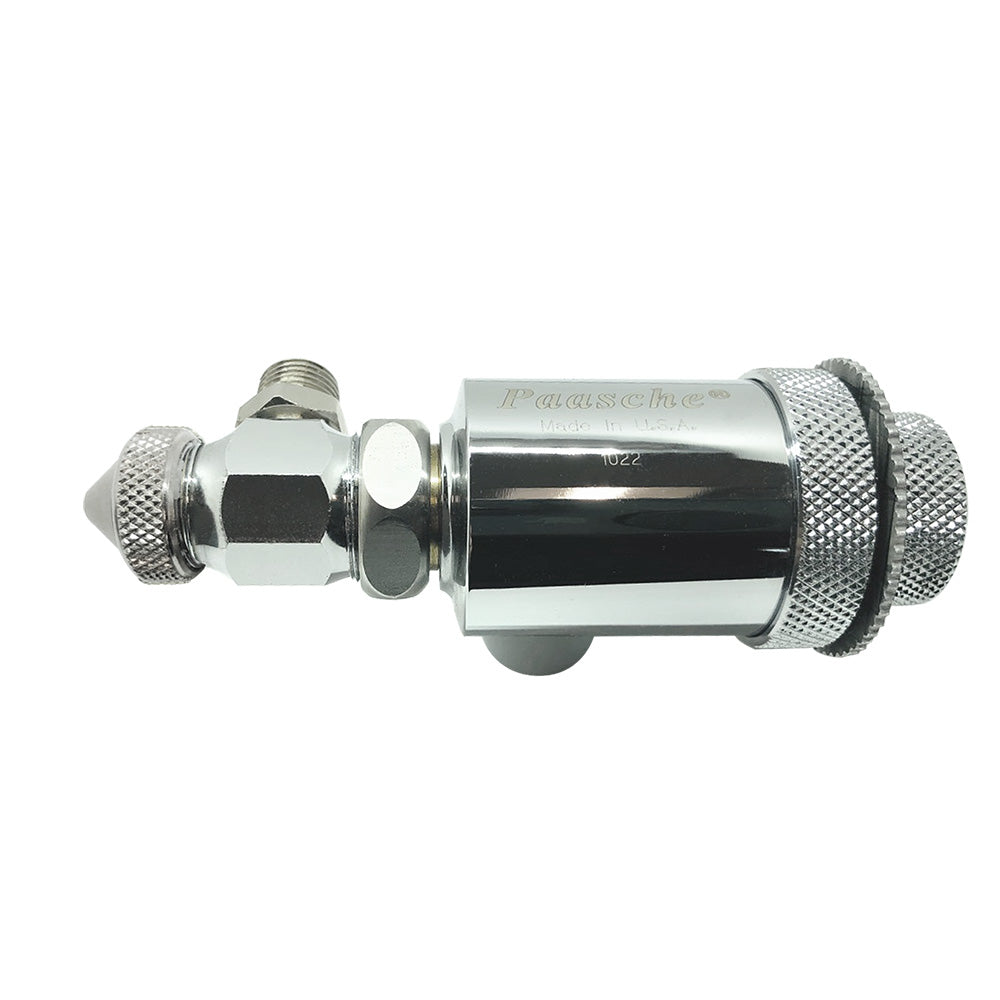

A-AUR-3 Auto Spray Gun:
       The A-AU series spray gun has one fluid and one air port.  Activation and atomizing will share the same air line.  Minimum activation pressure is  45 PSI.  If you want control over atomizing below that pressure look at A-AUAR and A-AUDR models.

  Delivers a round spray pattern between 1/8" and 2".
  The .046 fluid tip is for thinner fluids
  Required 45-60 PSI activation air.
  Both the fluid tip and needle are stainless steel allowing the use of water or solvent based materials
  Heads size can be changed be switching the AU- tip and AR-15- aircap to matching size.

Recommended Mounting Assembly: UM-20

Specs:
Part Number:        A-AUR-3
Type:                   Automatic Spray Gun
Head Size:           .046
Air Volume:          1.0 CFM
Air Pressure:        45-60 PSI
Air Inlet:              1/4" NPT (M)
Fluid Inlet:           1/4" NPT  (M)
Spray Pattern:      1/8" to 2"
Weight:&n(more...)
