A-C4F-0-9

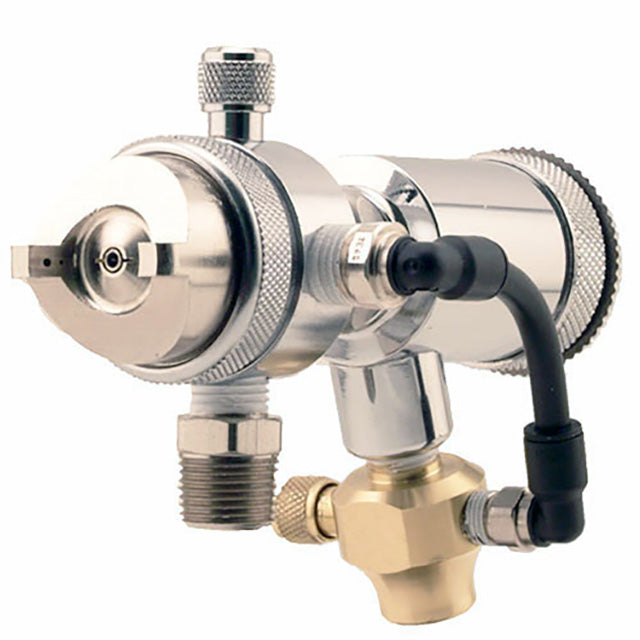

A-C4F-0-9 Auto Spray Gun

Description:

The A-C4F-0-9 Automatic Spray Gun features three independent controls for fluid, atomizing, and fan pattern adjustments, while maintaining a single air line connection. This design streamlines installation and conserves space, making it ideal for applications requiring flexibility and efficiency. The spray gun is adjustable to provide both round and flat spray patterns, accommodating a wide range of coating needs. Constructed with stainless steel fluid tip and needle, it is suitable for use with both water-based and solvent-based materials, ensuring durability and chemical resistance.

Key Features:

• Three independent controls for precise adjustment of fluid, atomizing air, and fan pattern.
• Single air line design for simplified setup and space savings.
• Adjustable spray pattern: round or flat, ranging from 1” to 12”.
• Stainless steel fluid tip and needle for compatibility with water or solvent-based materials.
• Chrome-plated finish for enhanced corrosion resistance and ease of maintenance.
• Robust and reliable construction with a weight of 2 lbs for stability in automated setups.

Suggested Mounting Assembly:

UM-20

Technical Specifications:

Specification     Detail

Part Number     A-C4F-0-9

Type    Automatic Spray Gun

Head Size         .055

Air Volume        7–9 CFM

Air Pressure     45–60 PSI

Air Inlet 1/4” NPT

Fluid Inlet         3/8” NPT

Spray Pattern    1” to 12” (Adjustable: round or flat)

Weight 2 lbs

Finish   Chrome Plated
