A-JUAR-0

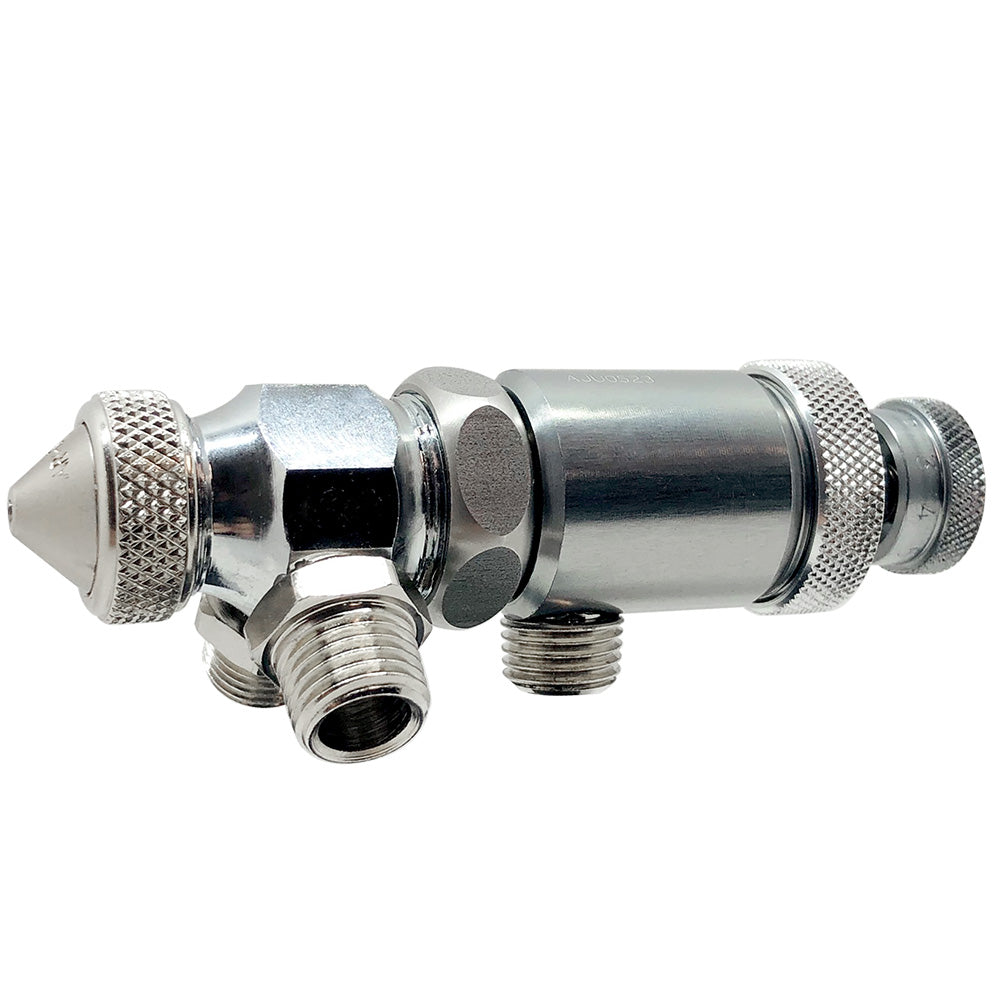

A-JUAR-0 Auto Spray Gun

Description:

The A-JUAR Auto Spray Gun is part of the A-JUAR series, designed for applications requiring precise atomization and control. This model features a separate atomizing air port, allowing independent regulation of activation and atomization air for superior fluid atomization. It is well-suited for use in environments where space is limited, thanks to its narrower cylinder.

 Key Features:

• Delivers a round spray pattern adjustable between 1/8" and 2".
• Equipped with a .021 fluid tip, ideal for thinner fluids.
• Narrower cylinder for access to tighter spaces.
• Requires 45–60 PSI activation air.
• Separate atomization line port for enhanced control.
• Stainless steel fluid tip and needle, compatible with both water-based and solvent-based materials.
• Head size can be changed by switching the AU- tip and AR-15- aircap to the corresponding size.
• Chrome-plated finish for durability and corrosion resistance.

 Notable Advantages:

• Enhanced atomization control due to separate air ports.
• Suitable for fine spraying applications with thinner fluids.
• Durable construction for long-term use.
• Easily adaptable to different head sizes for varied spray requirements.

Suggested Mounting Assembly:

UM-96

Technical Specifications:

Part Number     A-JUAR-0

Type    Automatic Spray Gun

Head Size         .021

Air Volume        1.0 CFM

Air Pressure     45–60 PSI

Air Inlet 1/4" NPT (M)

Fluid Inlet         1/4" NPT (M)

Spray Pattern    1/8" to 2"

Weight 0.7 lbs

Finish   Chrome Plated
