A-JUAR-000

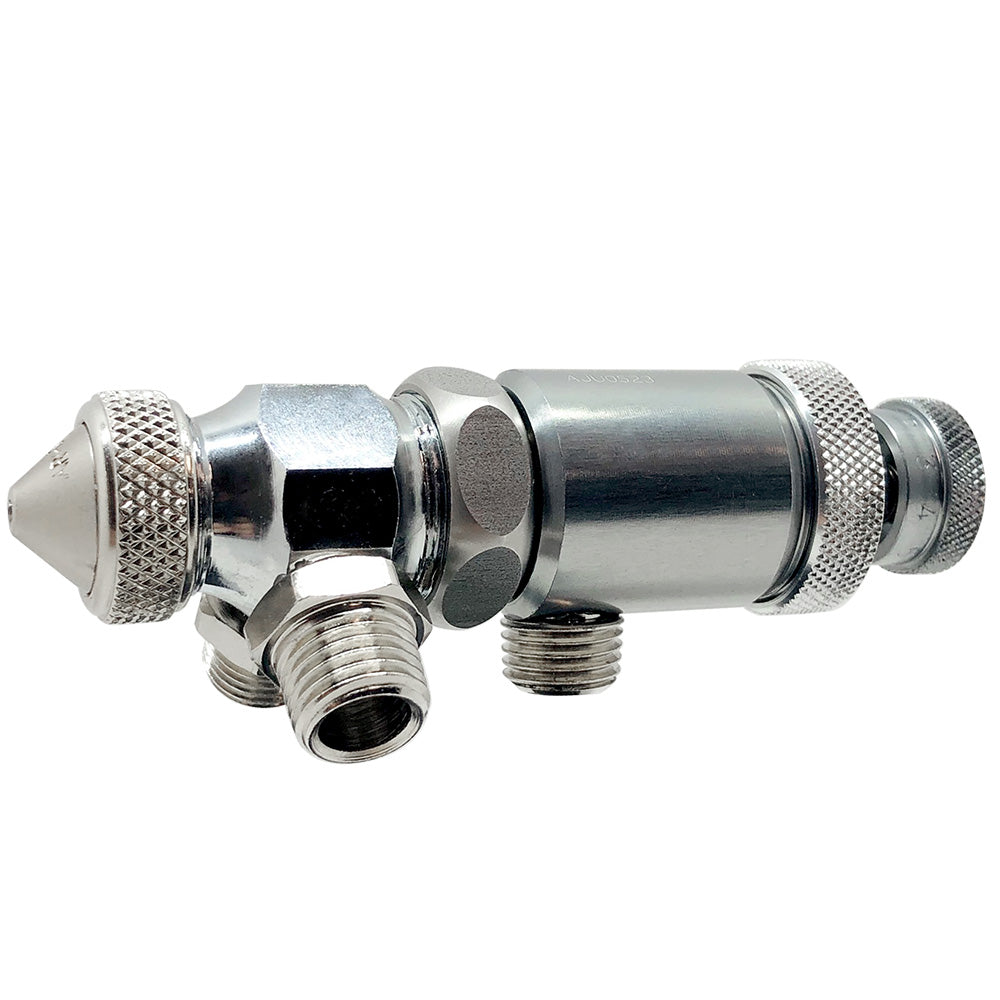

A-JUAR-000 Auto Spray Gun:
The A-JUAR series has an added atomizing air port so activation air and atomization air are separate.  This allows for finer control of your fluid atomization.

  The A-JUAR-000 delivers a round spray pattern between 1/8" and 2".
  The .014 fluid tip is for thinner fluids
  Has a narrower cylinder for tighter spaces.
  Required 45-60 PSI activation air.
  Separate atomization line port
  Both the fluid tip and needle are stainless steel allowing the use of water or solvent based materials
  Heads size can be changed be switching the AU- tip and AR-15- aircap to matching size.

Suggested Mounting Assembly: UM-96

Specs:
Part Number:       A-JUAR-000
Type:                  Automatic Spray Gun
Head Size:           .014
Air Volume:         1.0 CFM
Air Pressure:       45-60 PSI
Air Inlet:             1/4" NPT (M)
Fluid Inlet:          1/4" NPT  (M)
Spray Pattern:     1/8" to 2"
Weight:&nbs(more...)
