A-JUF-1

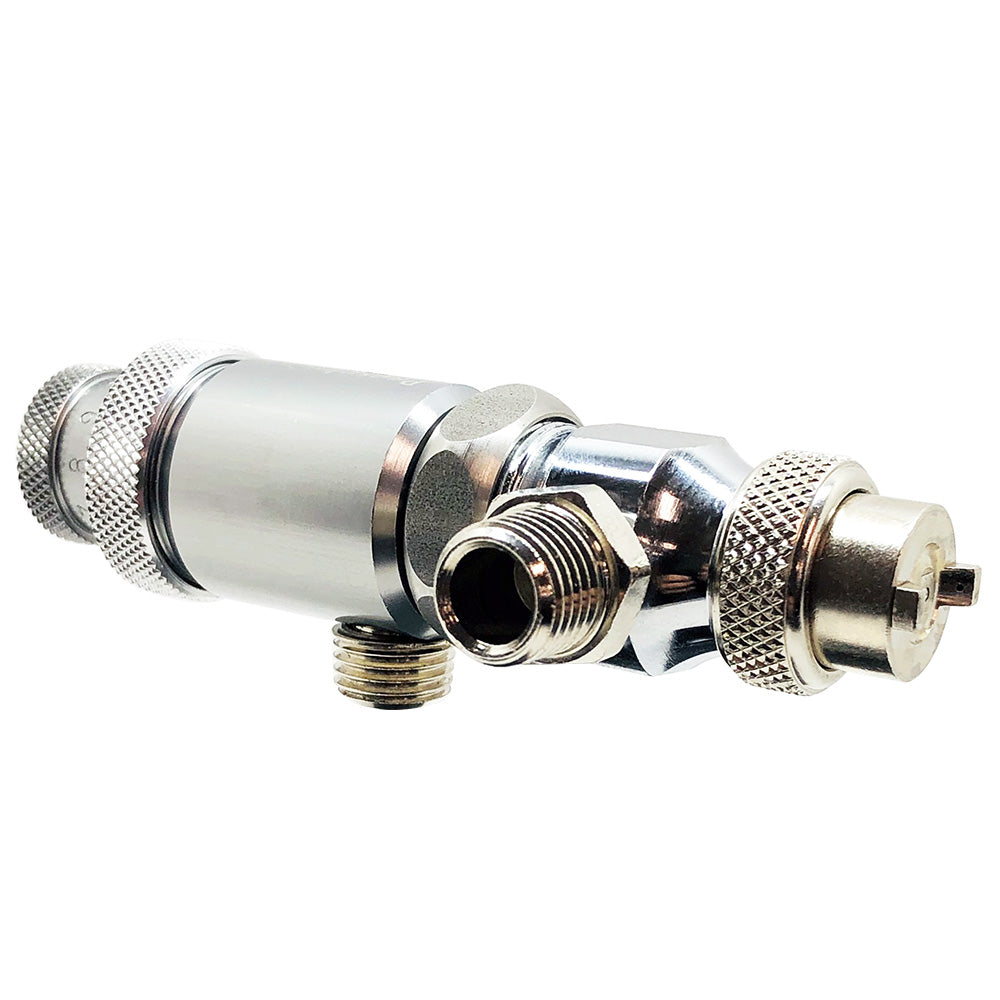

A-JUF-1 Auto Spray Gun

Description:

The A-JUF is a member of the A-JU series automatic spray guns, designed for efficient and reliable operation in various industrial applications. This model features a single fluid and air port, with activation and atomization sharing the same air line. The minimum activation pressure is 45 PSI. For applications requiring atomization control below this pressure, it is recommended to consider the A-JUAF and A-JUNVF models.

Key Features:

• Delivers a round spray pattern adjustable between 2" and 5".
• Equipped with a .028 fluid tip, suitable for thinner fluids.
• Features a narrower cylinder for access to confined spaces.
• Requires 45–60 PSI activation air.
• Both the fluid tip and needle are constructed from stainless steel, ensuring compatibility with both water-based and solvent-based materials.
• Head size can be adjusted by switching the AU- tip and ANFA- aircap to the desired size.
• Chrome-plated finish for enhanced durability and corrosion resistance.

 Notable Advantages:

• Simple design with shared air line for activation and atomization.
• Ideal for spraying thinner fluids in tight spaces.
• Durable and corrosion-resistant construction.
• Easily adaptable to various spray pattern requirements by changing the tip and aircap.

Recommended Mounting Assembly:

UM-96

Technical Specifications:

Specification     Detail

Part Number     A-JUF-1

Type    Automatic Spray Gun

Head Size         .028

Air Volume        1.0 CFM

Air Pressure     45–60 PSI

Air Inlet 1/4" NPT (M)

Fluid Inlet         1/4" NPT (M)

Spray Pattern    2" to 5"

Weight 0.7 lbs

Finish   Chrome Plated
