A-JUNVF-0

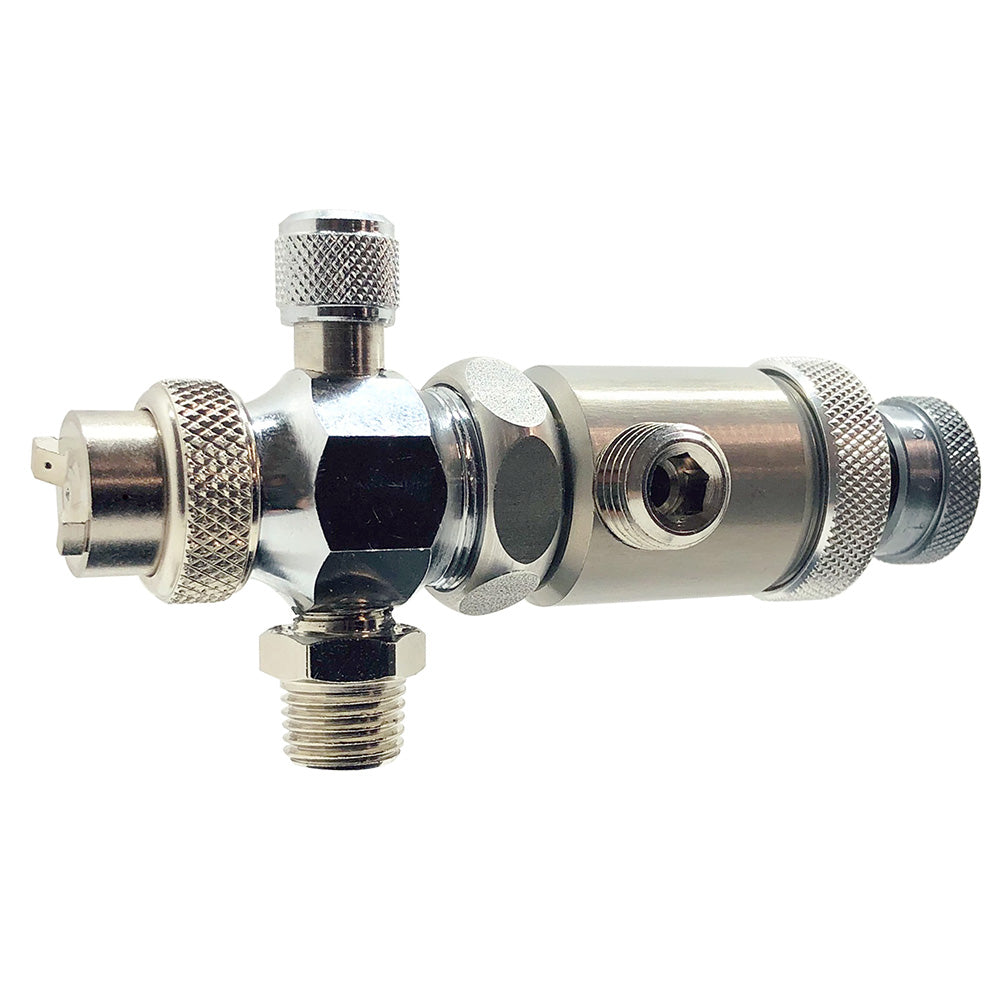

A-JUNVF-0 Auto Spray Gun:
The A-JUNV series spray gun has one fluid and one air port.  Atomizing air has an adjustment needle valve for fine tuning atomization.  If you want a separate atomizing port look at the A-JUAF series.

  Delivers a fan spray pattern between 2" and 5" depending on distance from surface.
  The .021 fluid tip is for thinner fluids
  Has a narrower cylinder for tighter spaces.
  Required 45-60 PSI activation air.
  Atomizing dial control included.
  Both the fluid tip and needle are stainless steel allowing the use of water or solvent based materials.
  Heads size can be changed be switching the AU- tip and ANFA- aircap to matching size.

Recommended Mounting Assembly: UM-96

Specs:
Part Number:         A-JUNVF-0
Type:                    Automatic Spray Gun
Head Size:            .021
Air Volume:          1.0 CFM
Air Pressure:        45-60 PSI
Air Inlet:               1/4" NPT (M)
Fluid Inlet:           1/4" NPT  (M)
Spr(more...)
