A-JUNVF-3

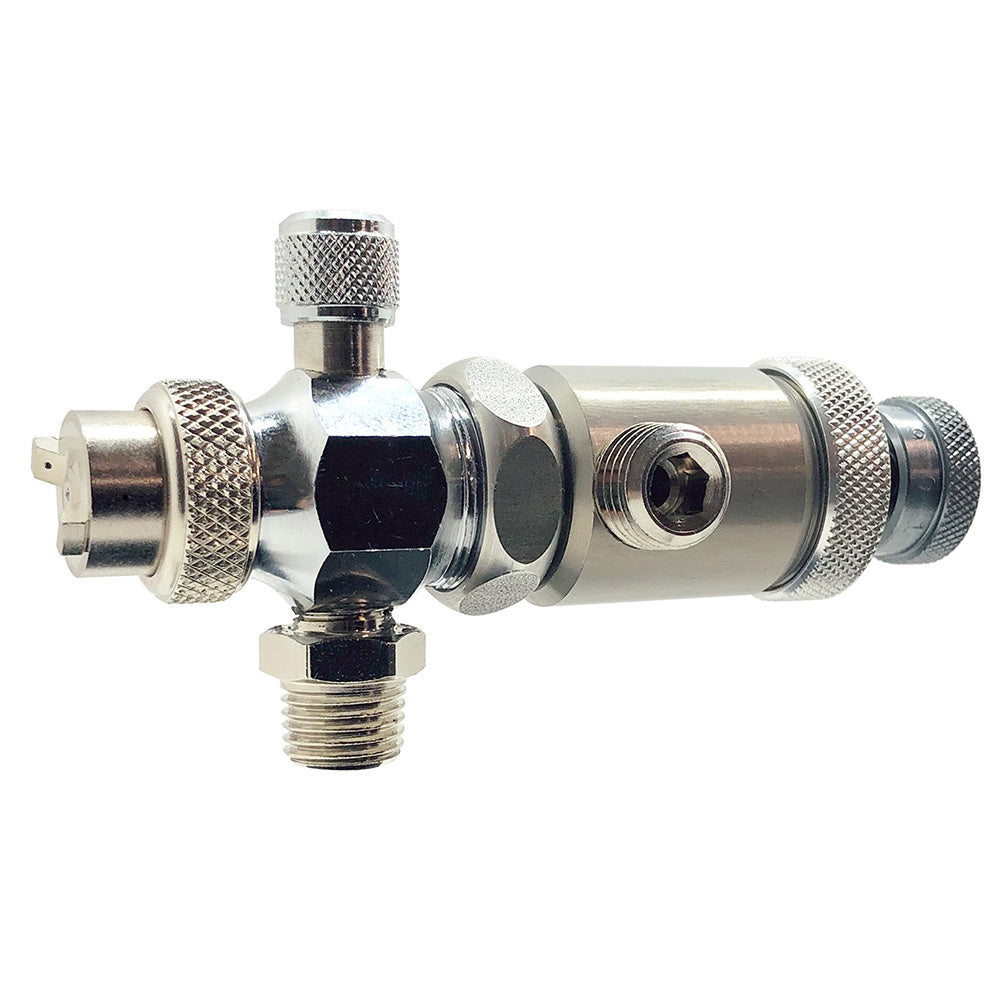

A-JUNVF-3 Auto Spray Gun Overview

The A-JUNV series spray gun is designed for precision applications, offering a single fluid and air port. It features an atomizing air adjustment needle valve for fine-tuning atomization. For applications requiring a separate atomizing port, the A-JUAF series is recommended.

Key Features:

• Spray Pattern: Delivers a fan spray pattern ranging from 2” to 5”, dependent on the distance from the surface.
• Fluid Tip: The .046 tip is ideal for thinner fluids.
• Design: Narrower cylinder allows for use in tighter spaces.
• Activation Air: Requires 45–60 PSI for operation.
• Atomizing Control: Equipped with an atomizing dial control for precise adjustments.
• Material Compatibility: Both the fluid tip and needle are made of stainless steel, suitable for water or solvent-based materials.
• Customizable Head Size: Head size can be changed by switching to matching AU- tip and ANFA- aircap components.

Recommended Mounting Assembly:

UM-96



Specifications

Specification     Details

Part Number     A-JUNVF-3

Type    Automatic Spray Gun

Head Size         .046

Air Volume        2.0 CFM

Air Pressure     45–60 PSI

Air Inlet 1/4" NPT (Male)

Fluid Inlet         1/4" NPT (Male)

Spray Pattern    2" to 5"

Weight 0.7 lbs

Finish   Chrome Plated
