A-JUNVR-2

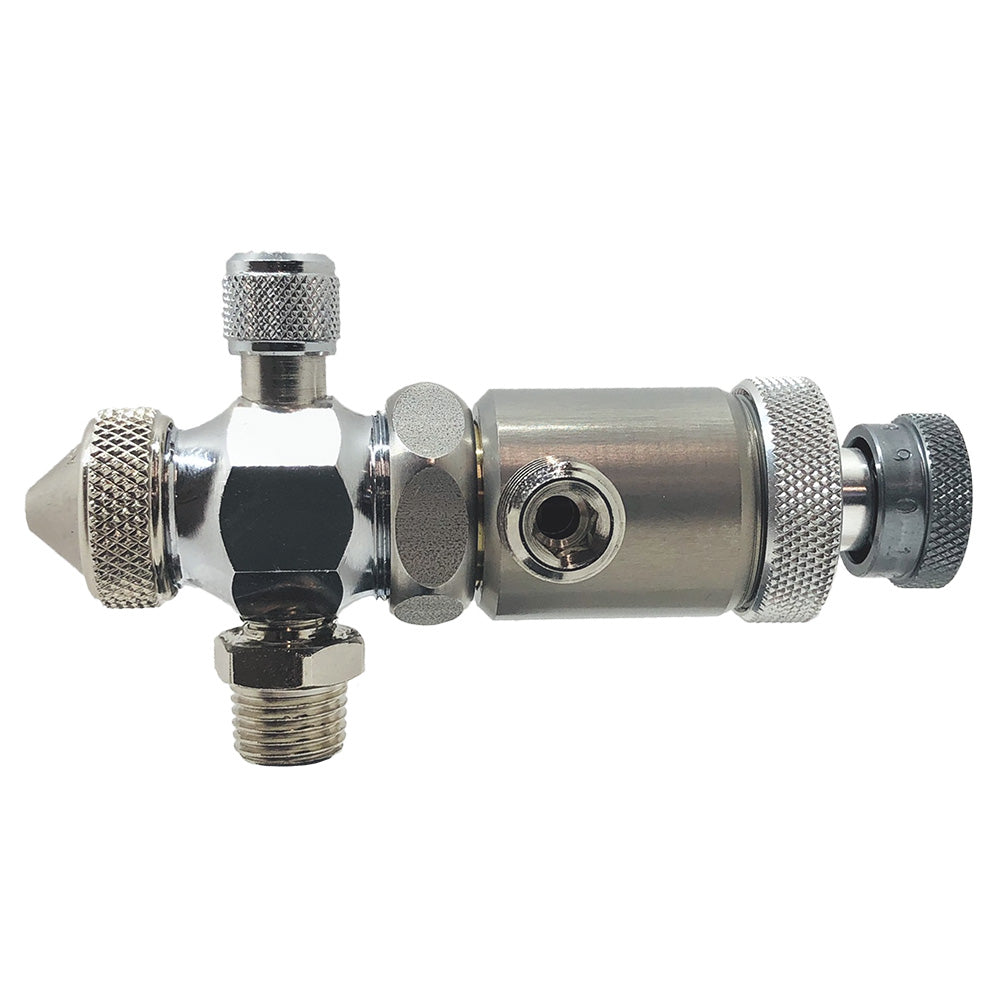

A-JUNVR-2 Auto Spray Gun-Product Overview:

The A-JUNVR series spray gun is designed for automatic applications, featuring a single fluid and a single air port. The atomizing air is precisely controlled via an adjustment needle valve, allowing for fine-tuning of the spray atomization. For users requiring a separate atomizing port, the A-JUA series is recommended.

 Key Features:

• Spray Pattern: Delivers a round spray pattern adjustable between 1/8" and 2".
• Fluid Tip: Equipped with a .040 fluid tip, suitable for thinner fluids.
• Design: Features a narrower cylinder, ideal for operation in confined or tight spaces.
• Activation Air: Requires 45-60 PSI for activation.
• Controls: Includes an atomizing dial control for precise adjustments.
• Material Compatibility: Both the fluid tip and needle are constructed from stainless steel, enabling use with water-based or solvent-based materials.
• Interchangeability: Head size can be changed by switching the AU- tip and AR-15- aircap to the corresponding size.

Recommended Mounting Assembly:

UM-96

Technical Specifications:

Part Number: A-JUNVR-2

Type: Automatic Spray Gun

Head Size: .040

Air Volume: 1.5 CFM

Air Pressure: 45–60 PSI

Air Inlet: 1/4" NPT (Male)

Fluid Inlet: 1/4" NPT (Male)

Spray Pattern: 1/8" to 2"

Weight: 0.7 lbs

Finish: Chrome plated
