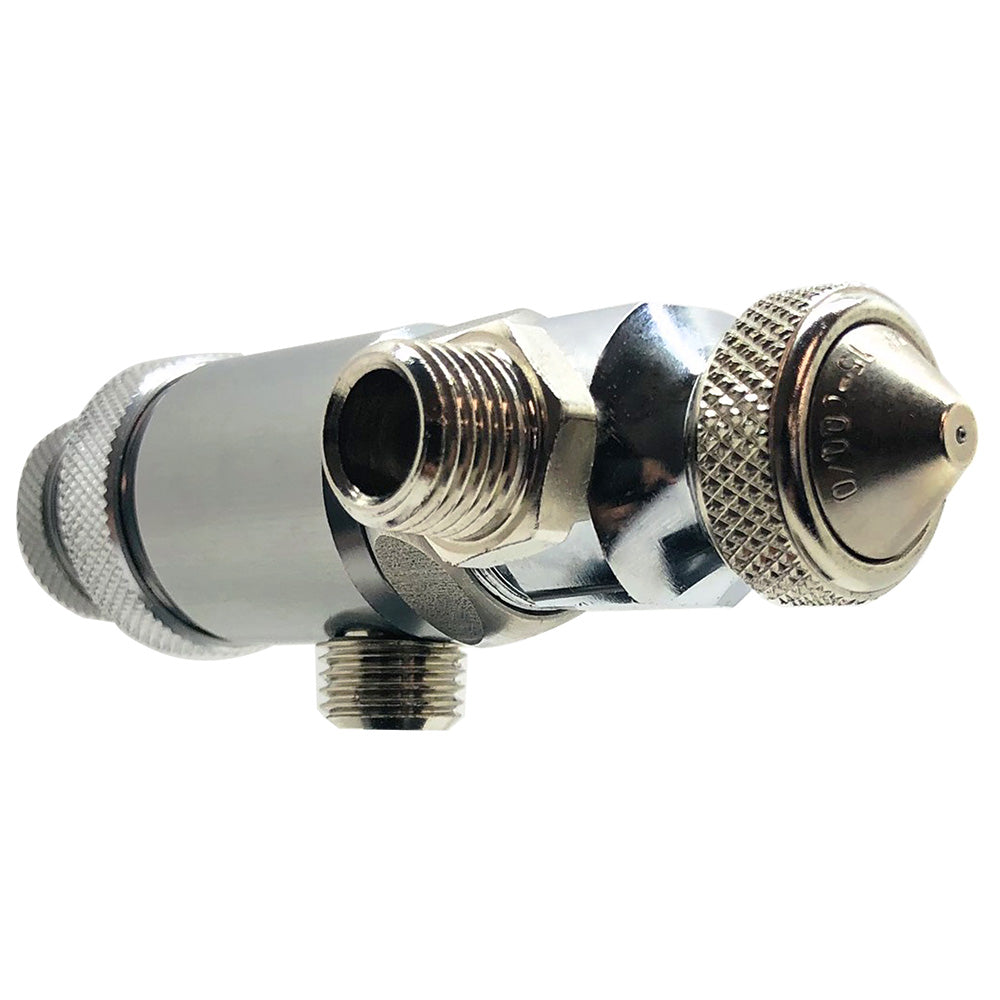

A-JUR-000 Automatic Spray Gun – Product Overview

The A-JUR is part of the A-JU series of automatic spray guns, designed for precision applications in confined or tight spaces. This model features a single fluid and air port, with both activation and atomization sharing the same air line. The minimum activation pressure required is 45 PSI. For users seeking atomization control below this pressure, alternative models such as the A-JUAR and A-JUNVR are recommended. The A-JUR delivers a round spray pattern adjustable between 1/8" and 2", making it suitable for detailed and controlled spraying tasks. Its narrower cylinder facilitates installation and operation in restricted areas. Both the fluid tip and needle are constructed from stainless steel, allowing compatibility with both water-based and solvent-based materials. The spray gun is finished in chrome plating for durability and ease of cleaning.

 Key Features

• Single fluid and air port (shared air line for activation and atomization)
• Minimum activation pressure: 45 PSI
• Round spray pattern: 1/8" to 2"
• Narrow cylinder for tight spaces
• Stainless steel fluid tip and needle (compatible with water or solvent-based materials)
• Chrome plated for enhanced durability
• Recommended mounting assembly: UM-96

Recommended Mounting Assembly: UM-96

Technical Specifications

Part Number     A-JUR-000

Type    Automatic Spray Gun

Head Size         0.014

Air Volume        1.0 CFM

Air Pressure     45–60 PSI

Air Inlet 1/4" NPT (Male)

Fluid Inlet         1/4" NPT (Male)

Spray Pattern    1/8" to 2" (Round)

Weight 0.7 lbs

Finish   Chrome Plated
