EBF-8-T1

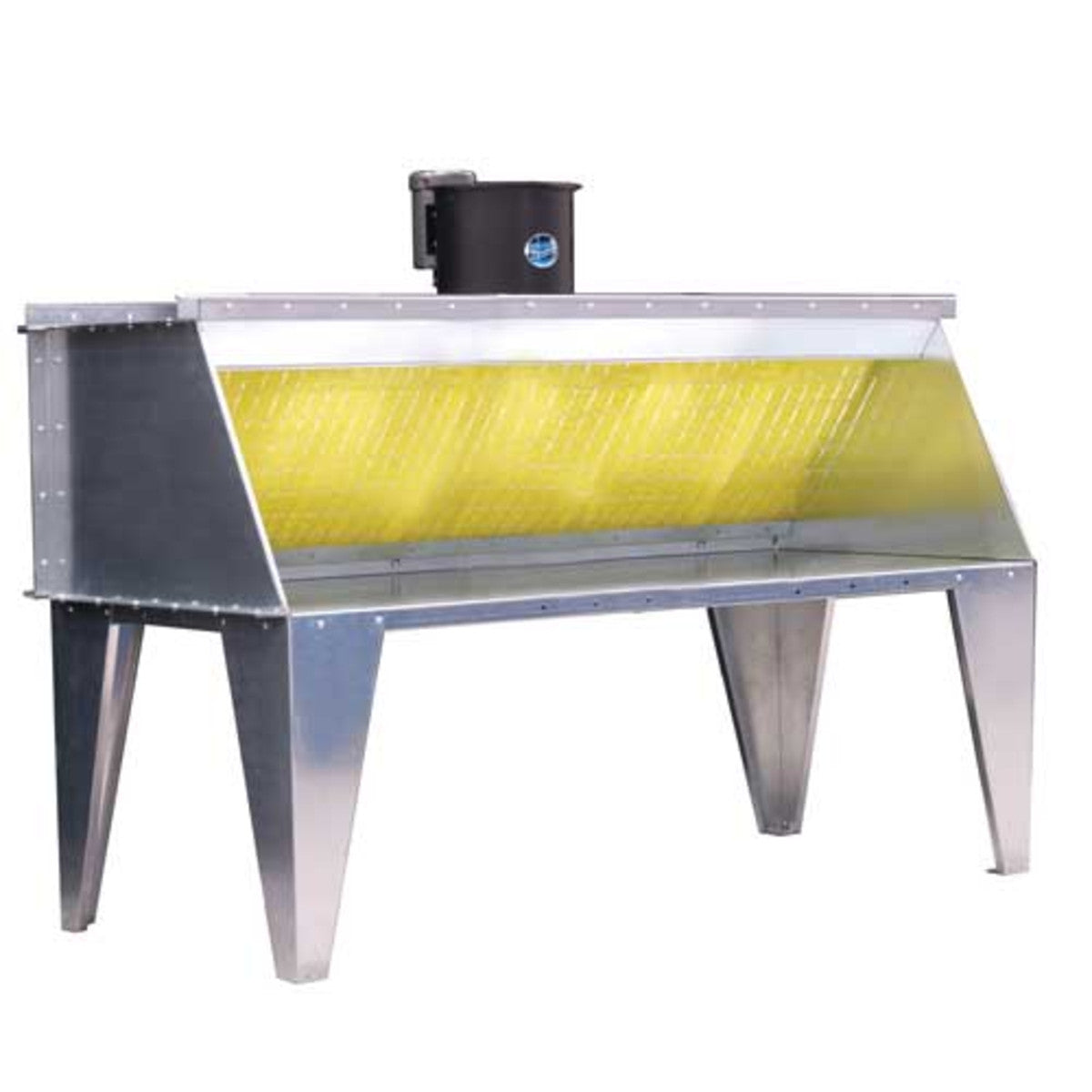

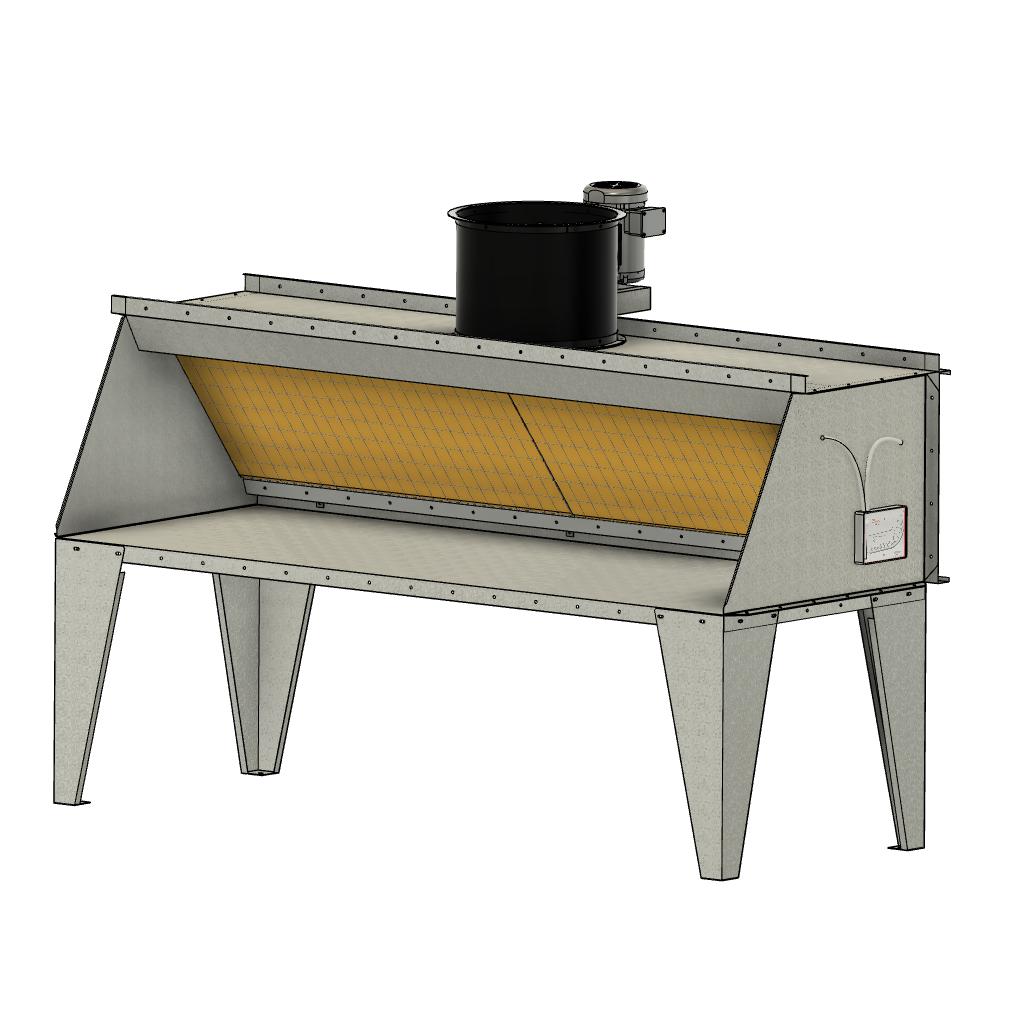

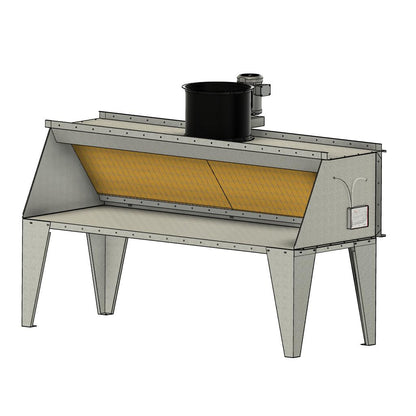

EBF series 8' Bench Spray Booth

Working Dimensions:

Width: 8'4"

Depth: 2'6"

Height: 2'

Overall Dimensions:

Width: 8'4"

Depth: 3'2"

Height: 5'8"

Included Components:

• 18-inch fan with sparkless fan blade, delivering 3,365 CFM
• 1/2 HP TEFC motor (1 phase, 115/230 volt)
• Belt guard
• Draft gauge
• Set of paint filters
• Complete assembly instructions and hardware
• Conforms to OSHA, NFPA, and EPA regulations

Booth requires assembly and must be hardwired (switch to be supplied by an electrician)

 Additional Notes:

• Ensure that the booth is installed in accordance with all local codes and regulations.
• Optional items may enhance functionality, ease of maintenance, and compliance with site-specific requirements.
• The booth must be hardwired by a qualified electrician
• Switch is not included and should be supplied by the electrician.
• If you require further information, a quotation, or recommendations regarding the selection of optional accessories, please let me know your specific needs or intended application.

Optional Accessories:

AG-12:                 Case of 50 filters

BE-54-18:           Duct flange (recommended for all booths)

A-18:                    2-foot section of duct

AD-18:                 2-foot section of duct with clean-out door

B-1/2-18:            90-degree elbow

EF-18:                  Flat roof flange (roof)

WC-18:               Weather canopy/damper (roof)

S-18:                    Wall shutter (side wall)
