FABF-4-T1

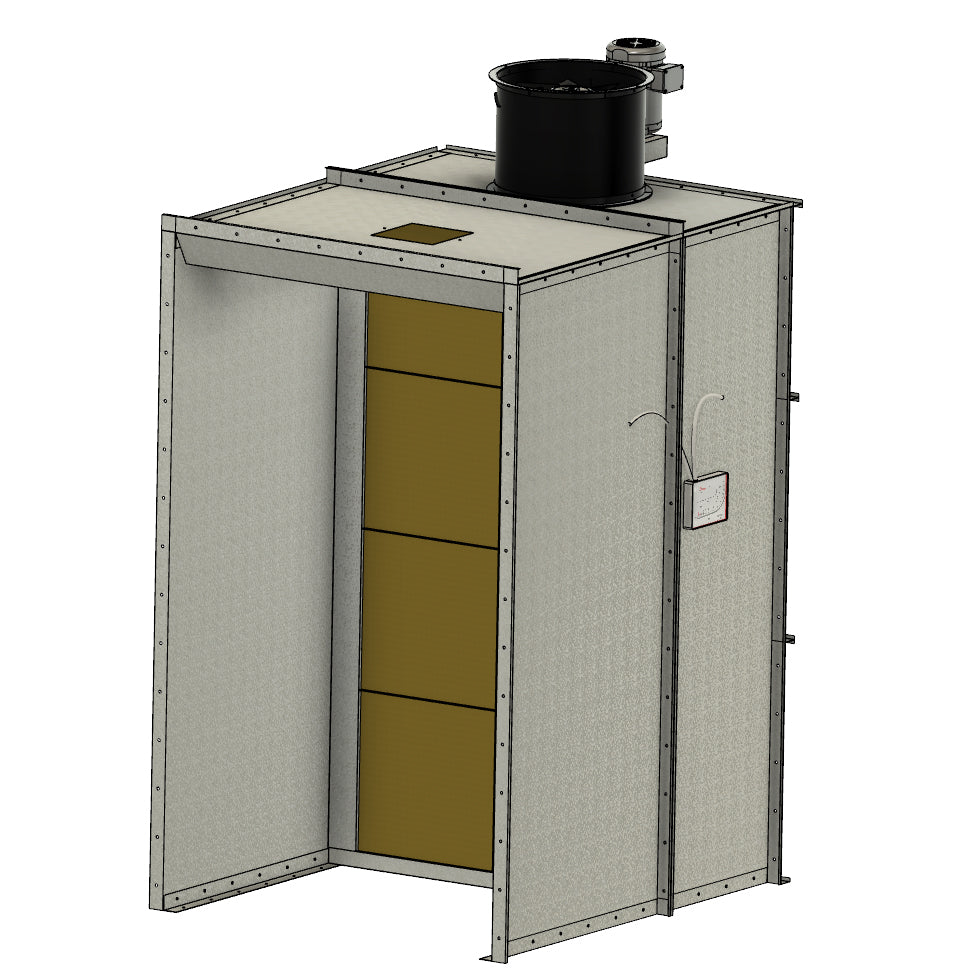

FABF Series 4' Walk In Spray Booth

Working Dimensions:

Width: 4'

Depth: 3'

Height: 7'

Overall Dimensions:

Width: 4'4"

Depth: 5'2"

Height: 8'2"

 Standard Features Included:

• 18-inch Fan with Sparkless Fan Blade
• 3/4 H.P. Totally Enclosed Motor (115/230 Volt, 1 Phase)
• Airflow: 3,365 CFM @ 1/4" SP or 120 FPM
• LED Light Fixture (Class I Div II), Bulb Included
• Belt Guard
• Draft Gauge
• Set of Paint Filters
• Complete Set of Assembly Instructions and Hardware
• Compliance: OSHA, NFPA, and EPA Regulations

Note: Booth must be assembled and hardwired (switch to be supplied by electrician)



Optional Accessories:

AG-20:                Case of 50 Filters

BE-54-18:           Duct Flange (Recommended for all booths)

A-18:                  2 Foot Section of Duct

AD-18:                 2-Foot Section of Duct with Clean-out Door

B-1/2-18:            90 Degree Elbow

EF-18:                  Flat Roof Flange (Roof)

WC-18:               Weather Canopy / Damper (Roof)

S-18:                    Wall Shutter (Side Wall)
