FABF-6-8-T3

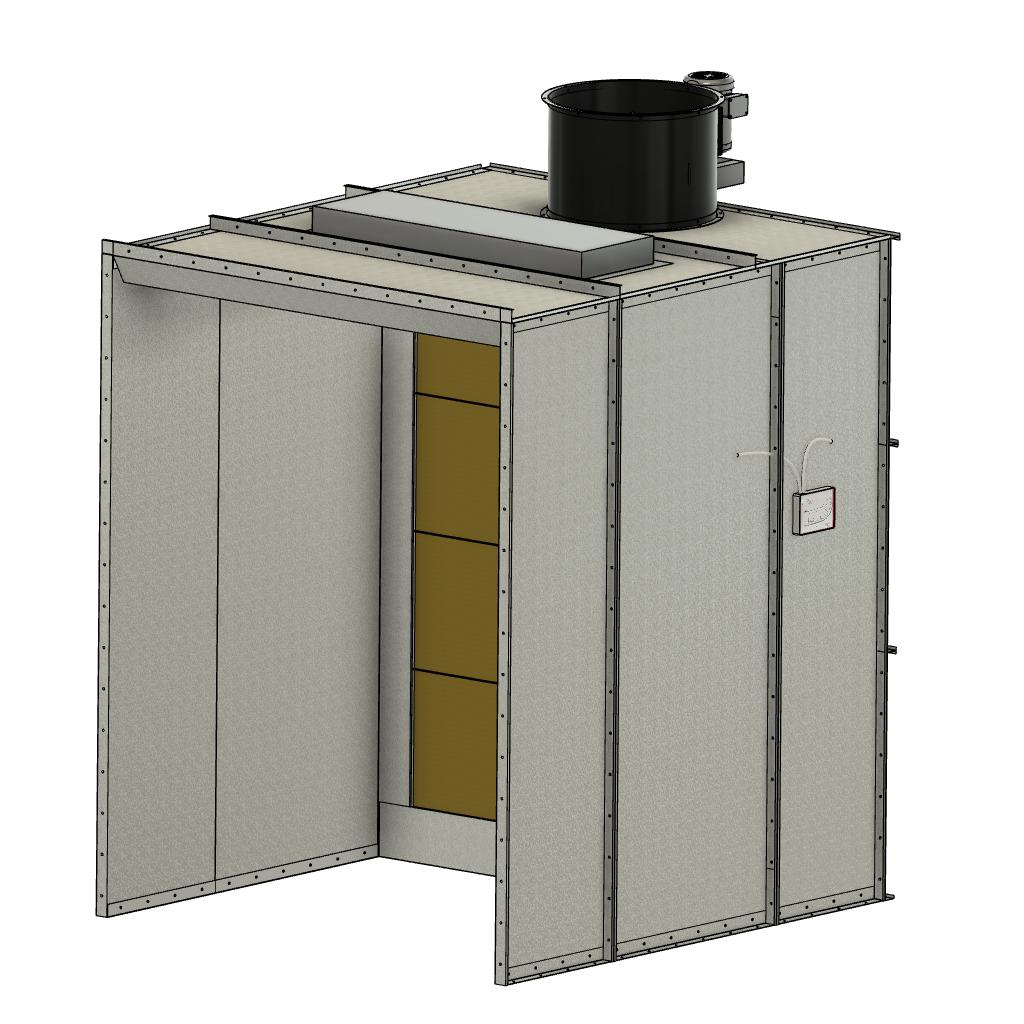

FABF Series 6'W x 8'H Walk In Spray Booth

Working Dimensions:

Width: 6'

Depth: 5'

Height: 8'

Overall Dimensions:

Width: 6'4"

Depth: 7'2"

Height: 9'7"

 Standard Features Included:

• 24-inch Fan with Sparkless Fan Blade
• 1 H.P. Totally Enclosed Motor (230/460 Volt, 3 Phase)
• Airflow: 6.850 CFM @ 1/4" SP or 142 FPM
• 4' Fluorescent Light Fixture(class I div II) - Bulbs Not Included
• Belt Guard
• Draft Gauge
• Set of Paint Filters
• Complete Set of Assembly Instructions and Hardware
• Compliance: OSHA, NFPA, and EPA Regulations

Note: Booth must be assembled and hardwired (switch to be supplied by electrician)



Optional Accessories:

AG-20:                Case of 50 Filters

BE-54-24:           Duct Flange (Recommended for all booths)

A-24:                  2 Foot Section of Duct

AD-24:                 2-Foot Section of Duct with Clean-out Door

B-1/2-24:            90 Degree Elbow

EF-24:                  Flat Roof Flange (Roof)

WC-24:               Weather Canopy / Damper (Roof)

S-24:                    Wall Shutter (Side Wall)
