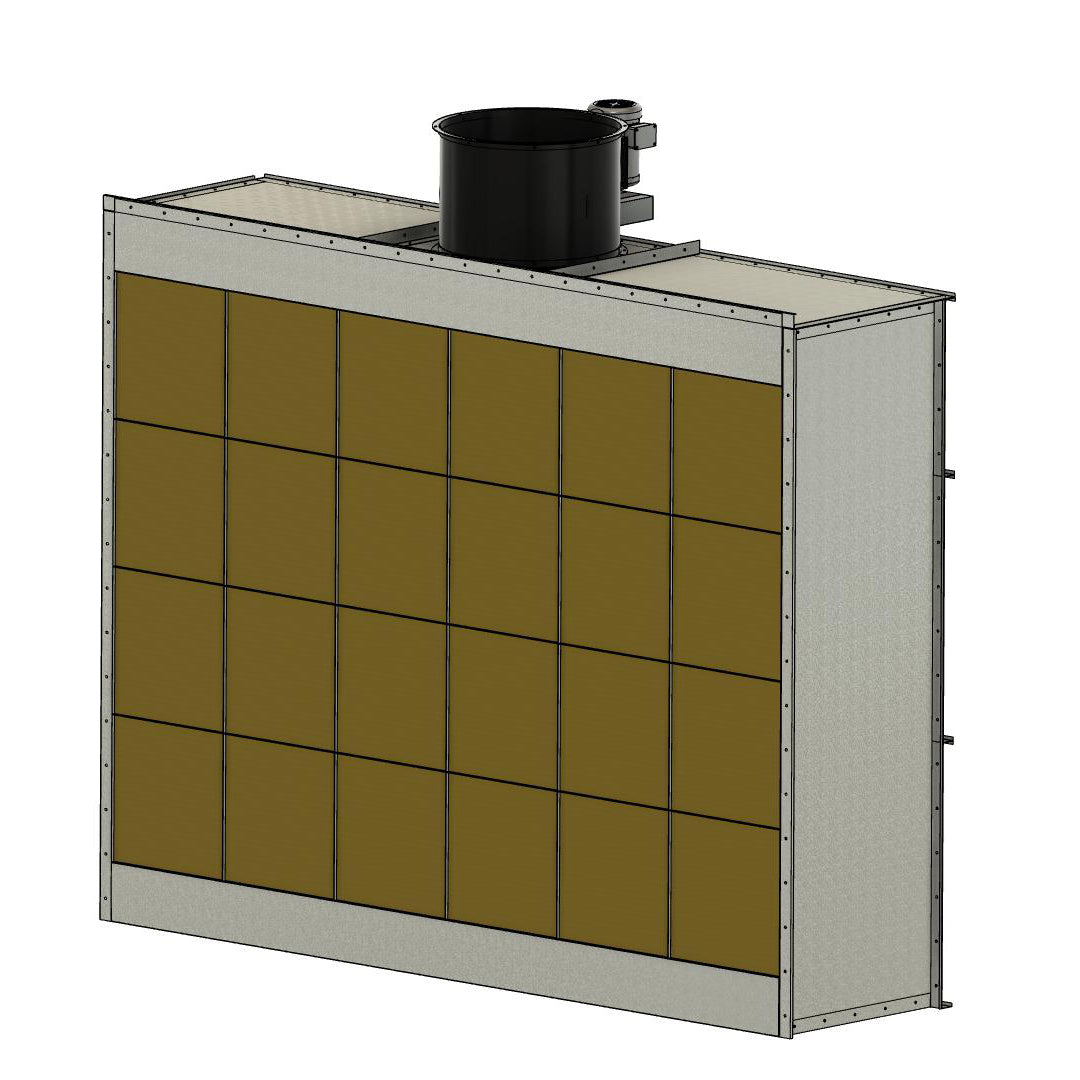

FABFC-10-8-T1

10'W x 8'H Filter Chamber

Overall Dimensions:  10'W x 2'8"D x 8'5"H (To Top of Fan)

The Filter Chamber Includes:
24 inch Fan with Sparkless Fan Blade
2 H.P. Totally Enclosed Motor 115/230 Volt, 1 Phase
9,475 CFM @ 1/4"SP
Belt Guard
Draft Gauge
Set of Paint Filters
Full set of assembly instructions and hardware
Chamber must be assembled and hardwired (switch to be supplied by electrician)

Optional Items:
AG-20           Case of 50 Filters
BE-54-24       Duct Flange (Recommended for all booths)
A-24              2 Foot Section of Duct
AD-24            2 Foot Section of Duct with Clean Out Door
B-1/2-24        90 Degree Elbow
EF-24             Flat Roof Flange (Roof)
WC-24           Weather Canopy / Damper (Roof)
S-24              Wall Shutter (Side Wall)
