FABFC-6-T1

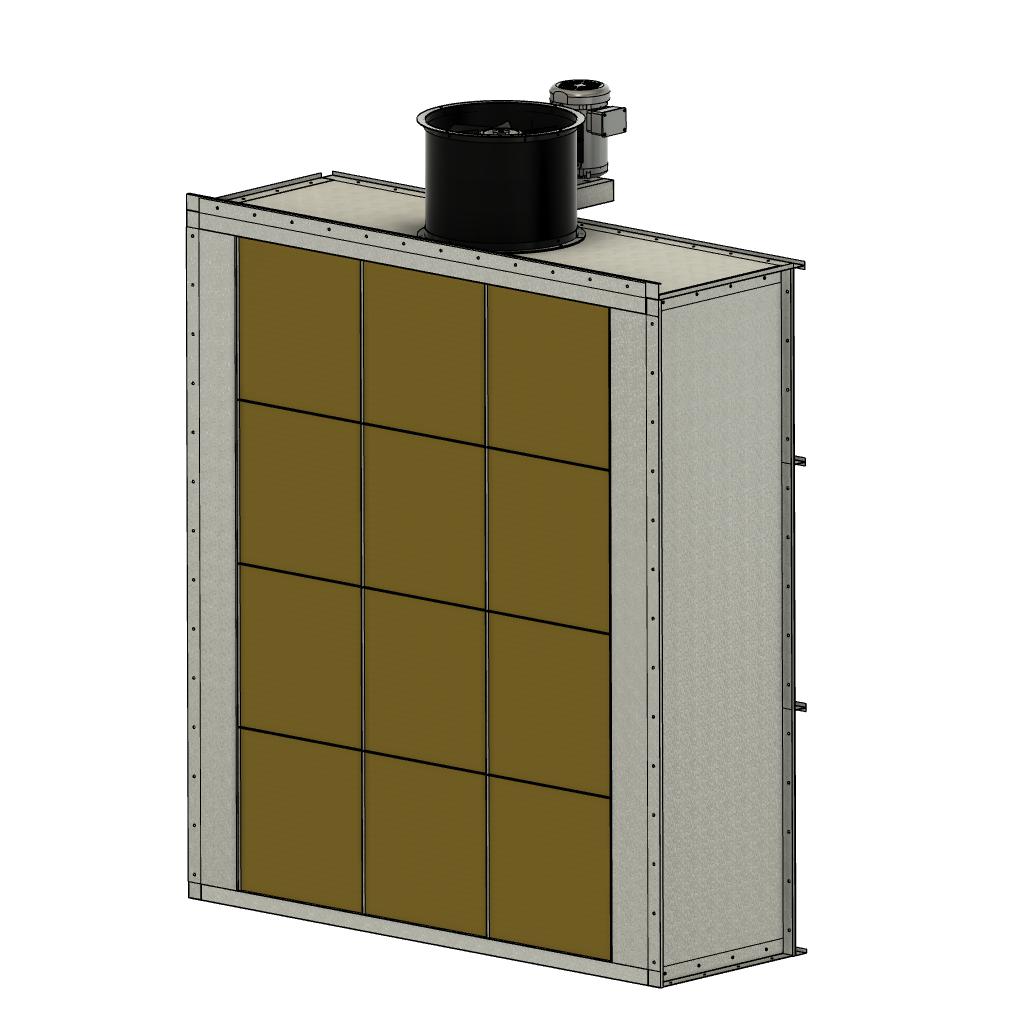

6'W x 7'H Filter Chamber

Overall Dimensions:  6'W x 2'8"D x 8'5"H (To Top of Fan)

The Filter Chamber Includes:
18 inch Fan with Sparkless Blade
1 H.P. Totally Enclosed Motor 115/230 Volt, 1 Phase
5,000 CFM @ 1/4"SP or 119 FPM
Belt Guard
Set of Paint Filters
Full set of assembly instructions and hardware
Chamber must be assembled and hardwired (switch to be supplied by electrician)

Optional Items:
AG-20           Case of 50 Filters
BE-54-18       Duct Flange (Recommended for all booths)
A-18              2 Foot Section of Duct
AD-18            2 Foot Section of Duct with Clean Out Door
B-1/2-18        90 Degree Elbow
EF-18             Flat Roof Flange (Roof)
WC-18           Weather Canopy / Damper (Roof)
S-18              Wall Shutter (Side Wall)
