FABSF-3-T1

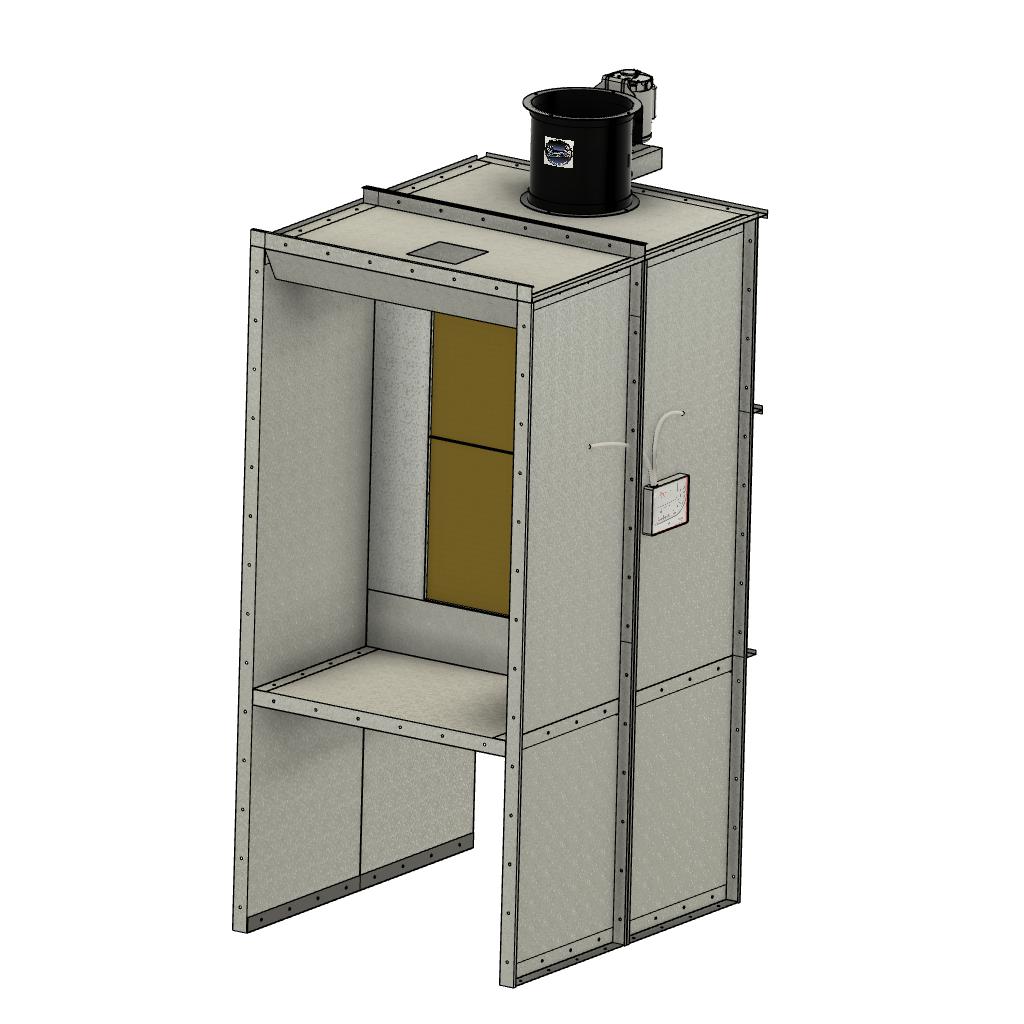

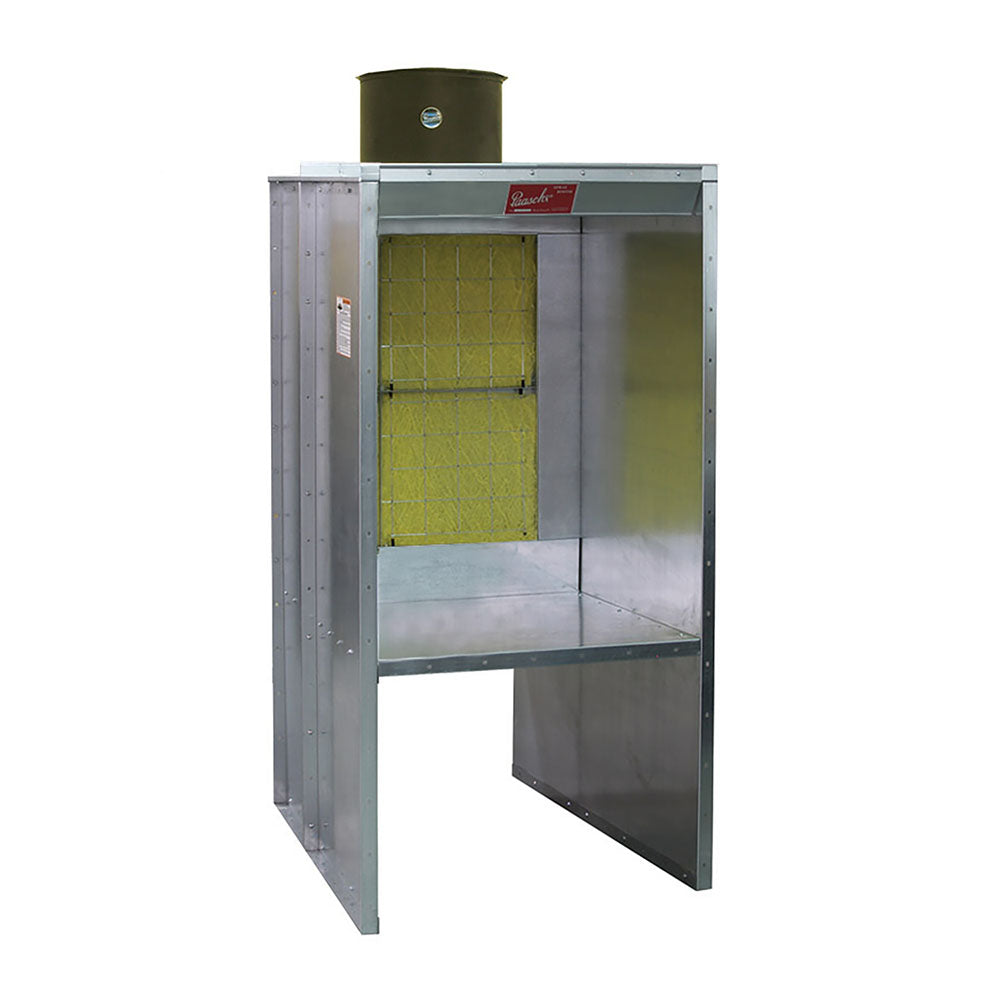

3' Shelf Type Spray Booth

Working Dimensions:3'W x 2'D x 4'6"H

Over All Dimensions: 3'4"W x 4'2"D x 8'2"H

Standard Features Included:

• 12-inch fan with sparkless fan blade
• 1/4 HP totally enclosed motor (115/230 Volt, single phase)
• Airflow: 1,500 CFM @ 1/4" static pressure, or 110 FPM
• LED light fixture (Class I, Division II) with bulb
• Belt guard
• Draft gauge
• Set of paint filters
• Complete assembly instructions and hardware
• Compliance with OSHA, NFPA, and EPA regulations



Note: Booth must be assembled and hardwired; electrical switch to be supplied by electrician

Optional Accessories:

AG-20:                Case of 50 filters

BE-54-12:           Duct flange (recommended for all booths)

A-12:                    2 foot section of duct

AD-12:                 2 foot section of duct with clean-out door

B-1/2-12:            90-degree elbow

EF-12:                  Flat roof flange (roof)

WC-12:               Weather canopy/damper (roof)

S-12:                    Wall shutter (side wall)
