FABSF-6-T1

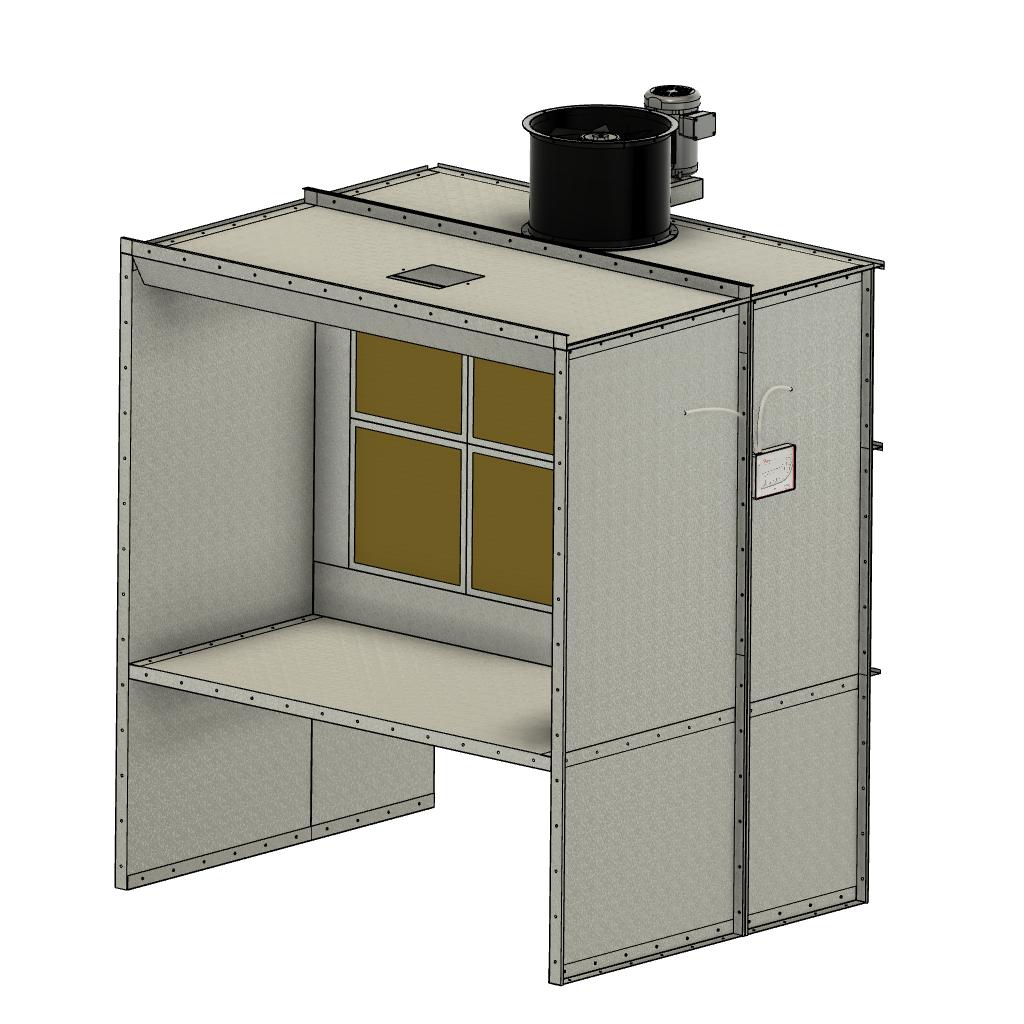

6' Shelf Type Spray Booth

Working Dimensions:6'W x 3'D x 4'6"H

Over All Dimensions: 6'4"W x 5'2"D x 8'5"H

Standard Features Included:

• 18-inch fan with sparkless fan blade
• 1/2 HP totally enclosed motor (115/230 Volt, 1 Phase)
• Airflow: 3,365 CFM @ 1/4" static pressure, or 124 FPM
• LED light fixture (Class I, Division II) with bulb
• Belt guard
• Draft gauge
• Set of paint filters
• Complete assembly instructions and hardware
• Compliance with OSHA, NFPA, and EPA regulations

Note: Booth must be assembled and hardwired; electrical switch to be supplied by electrician

Optional Accessories:

AG-20:                Case of 50 filters

BE-54-18:           Duct flange (recommended for all booths)

A-18:                    2 foot section of duct

AD-18:                 2 foot section of duct with clean-out door

B-1/2-18:            90-degree elbow

EF-18:                  Flat roof flange (roof)

WC-18:               Weather canopy/damper (roof)

S-18:                    Wall shutter (side wall)

If you require a quotation, further technical details, installation guidance, or recommendations on optional accessories, please specify your needs. I am at your service to assist with any additional information or clarification regarding this spray booth or its components.
