H-100D

H-100D Airbrush Package:

This airbrushing kit is a well-rounded solution suitable for both hobbyists and professional artists. Its versatile spray capabilities, quiet and reliable compressor, and essential cleaning tools are the perfect airbrushing setup.

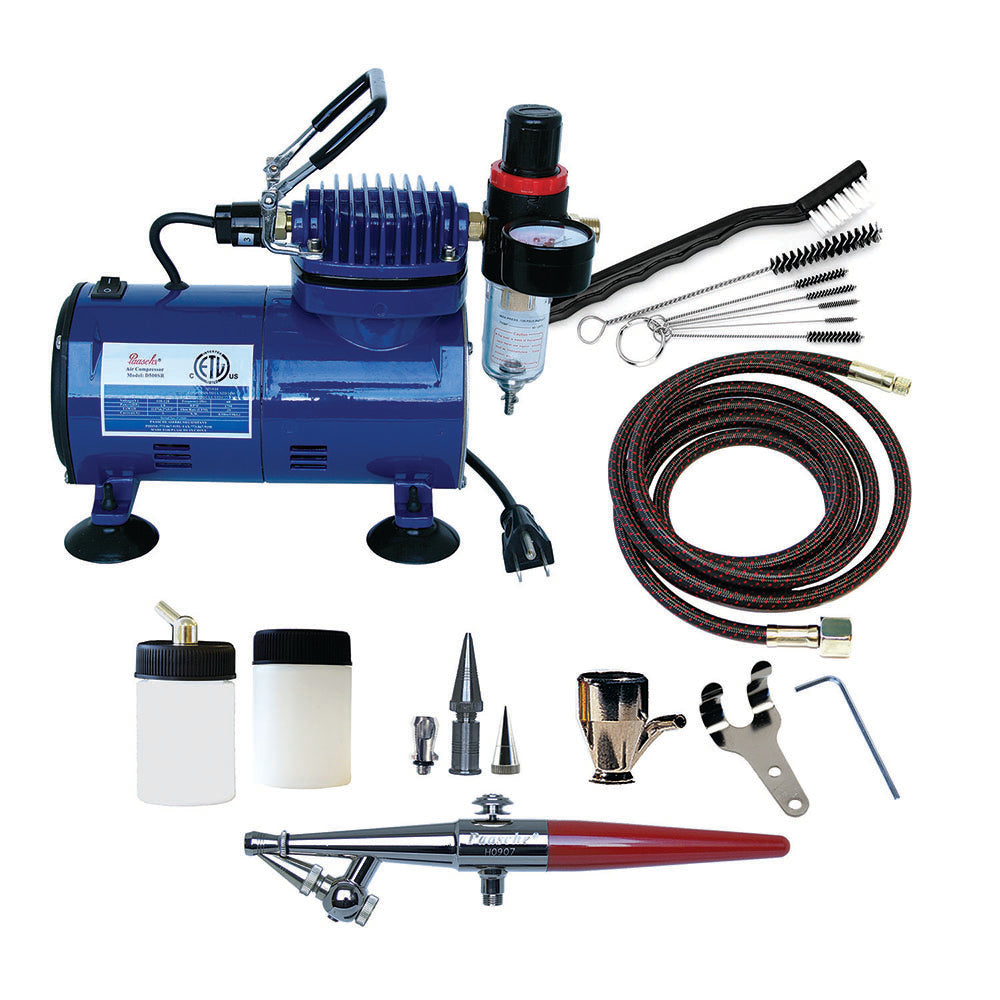

Included in Kit:

Paasche H-3AS Airbrush Kit Components:

Paasche H#3 Airbrush (Single Action, External Mix, Siphon Feed)

Spray Heads: Size 1 (.45mm), Size 5 (1.05mm)

1/4oz Metal Cup

1oz Bottle Assembly

1oz Storage Bottle

Airbrush Hanger

Wrench

6-foot Braided Air Hose

1/8" BSP Adapter

Instruction Manual



H Single Action - External Mix - Siphon Feed Airbrush

 The H Single Action Airbrush features a chrome-plated body for enhanced durability. It comes equipped with all three available spray heads, enabling a wide range of applications. This airbrush allows users to achieve fine lines as narrow as 1/16 inch and broader patterns up to 1-1/2 inches. It’s simple, user-friendly design requires minimal practice compared to double-action models. Ideal for basic spraying tasks such as solid coats, uniform lines, or stencil work, the H Single Action Airbrush is easy to clean—simply spray your paint cleaner through the airbrush. It is suitable for various uses, including hobbies, crafts, chip and ding repair, taxidermy, ceramics, cake decorating, tanning, tattoos, and more. Proudly made in the USA.

Airbrush Specifications:

Part Number: H-3AS

Type: Single Action, External Mix, Siphon Feed

Head Sizes: Size 1 (.45mm), Size 3 (.65mm), Size 5 (1.05mm)

Fluid Packing: Suitable for both solvent and water-based fluids

Air Volume: 20 PSI at 0.5 CFM

Air Pressure Range: 20–75 PSI

Air Inlet: 1/4"-20 Thread (Paasche thread), adapters available

Bottle Sizes: Compatible with bottles from 1/4 oz to 8 oz

Spray Pattern: Adjustable from 1/32 in to 1-1/2 in

Weight: 1.1 lbs

Finish: Chrome-plated body



D500SR Compressor Specifications:

Type: 1/5 HP Piston Compressor

Regulator & Moisture Trap: Included

Pressure Output: 1–35 PSI (varies depending on airbrush)

Noise Level: 47 dB (quiet operation)

Hose Fittings: Standard Paasche 1/4NPT, 1/8 BPS hose adaptor included for compatibility with competitor hoses

Features:

• Auto shutoff to prolong compressor life
• carrying handle
• lightweight and portable
• Warranty: 1 year from date of purchase

AC-7 Cleaning Kit:

airbrush cleaning kit compatible with any airbrush model
