H-1AS

H Single Action - External Mix - Siphon Feed Airbrush

The H Single Action Airbrush features a durable, chrome-plated body and comes assembled with a size #3 head, allowing for versatile application. This airbrush enables users to achieve fine lines as narrow as 1/16 inch and spray patterns up to 1-1/2 inches wide. Its simple, user-friendly design requires minimal practice compared to double action models, making it ideal for basic spraying tasks such as solid coats, uniform lines, or stencil work.

Cleaning is straightforward—just spray your paint cleaner through the airbrush. The H model is suitable for a wide range of uses, including hobbies, crafts, chip and ding repair, taxidermy, ceramics, cake decorating, tanning, tattoos, and more. Proudly made in the USA.

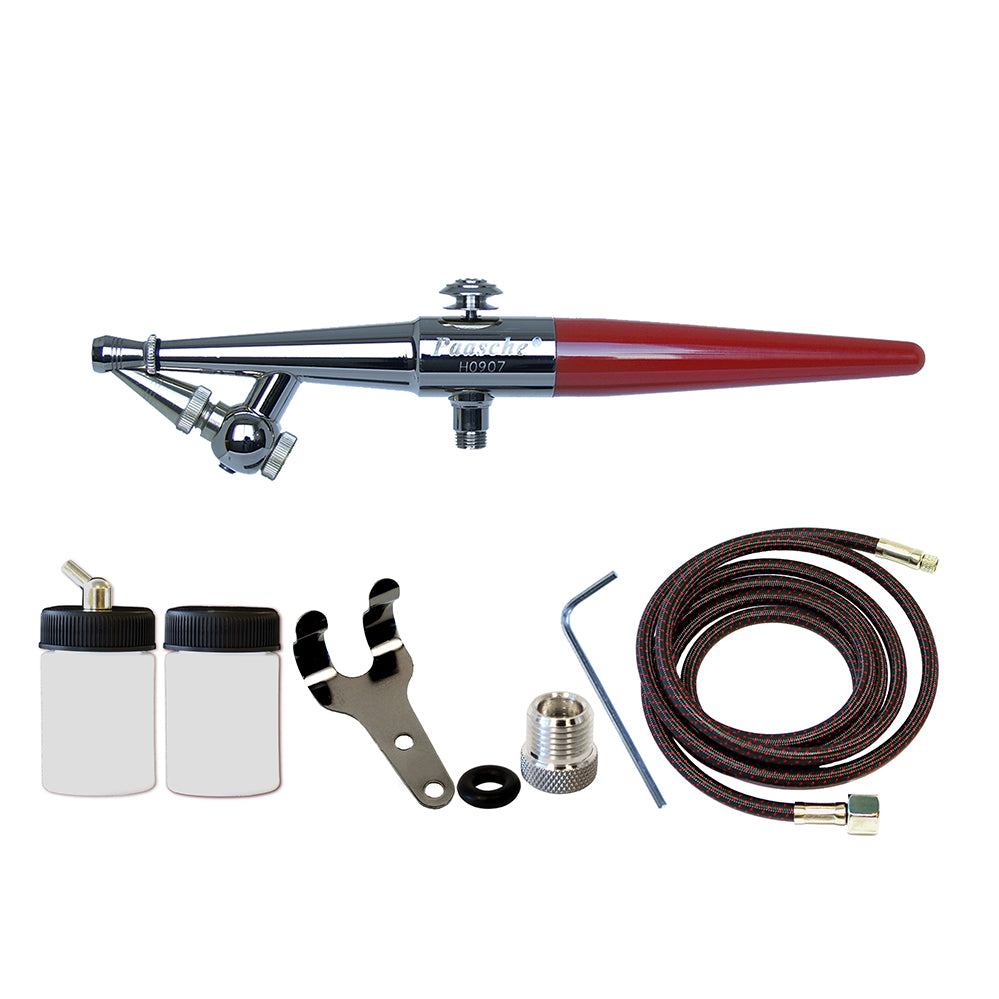

H-1AS Includes:

H#3 airbrush

1 oz. bottle assembly

1 oz. storage bottle

1/8" BSP airbrush adapter

Hanger

Wrench

6-foot braided air hose

Manual

Features:

• Made in the USA
• Highly polished and hardened stainless steel needles for longevity and reduced clogging
• Solvent-proof needle packing for use with water- and solvent-based paints
• Chrome-plated body for durability

Specifications:

Part Number: H-1AS

Type: Single Action, External Mix, Siphon Feed

Head Size: #3 (0.65 mm)

Fluid Packing: Compatible with solvent or water-based fluids

Air Volume: 20 PSI @ 0.5 CFM

Air Pressure: 20–75 PSI

Air Inlet: ¼"-20 thread (Paasche thread) & 1/8" BSP airbrush adapter

Bottle Size: Compatible with 1/4 oz. to 8 oz. bottles

Spray Pattern: 1/32" to 1-1/2"

Weight: 1 lb.

Finish: Chrome-plated body
