H-3WC

H-3WC Single Action - External Mix - Siphon Feed Airbrush

The H Single Action Airbrush comes packed in our deluxe wood case and features a durable, chrome-plated body and includes all three available spray heads, providing versatility for a wide range of applications. This airbrush allows users to achieve fine lines as narrow as 1/16 inch and spray patterns up to 1-1/2 inches wide. Its simple, user-friendly design requires minimal practice compared to double action models, making it ideal for basic spraying tasks such as solid coats, uniform lines, or stencil work.

Cleaning is straightforward—simply spray your paint cleaner through the airbrush. The H model is suitable for a variety of uses, including hobbies, crafts, chip and ding repair, taxidermy, ceramics, cake decorating, tanning, tattoos, and more. Proudly made in the USA.

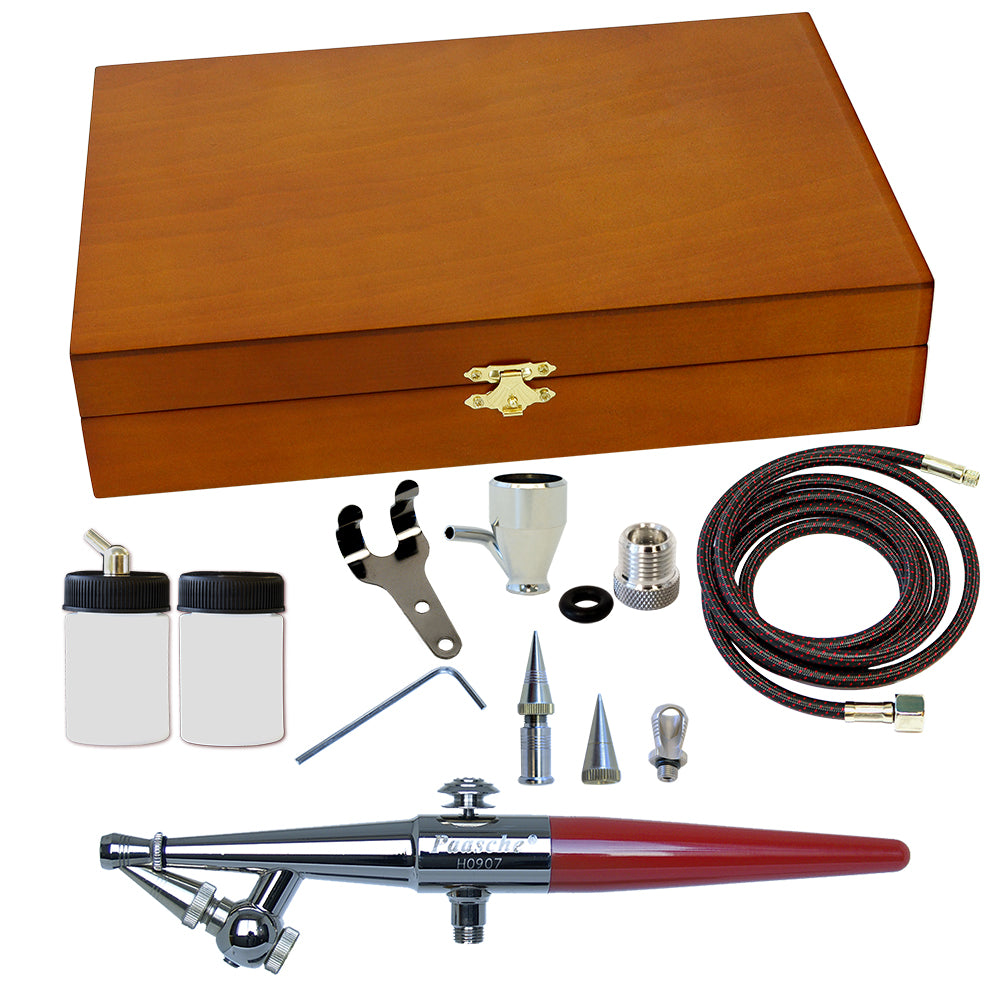

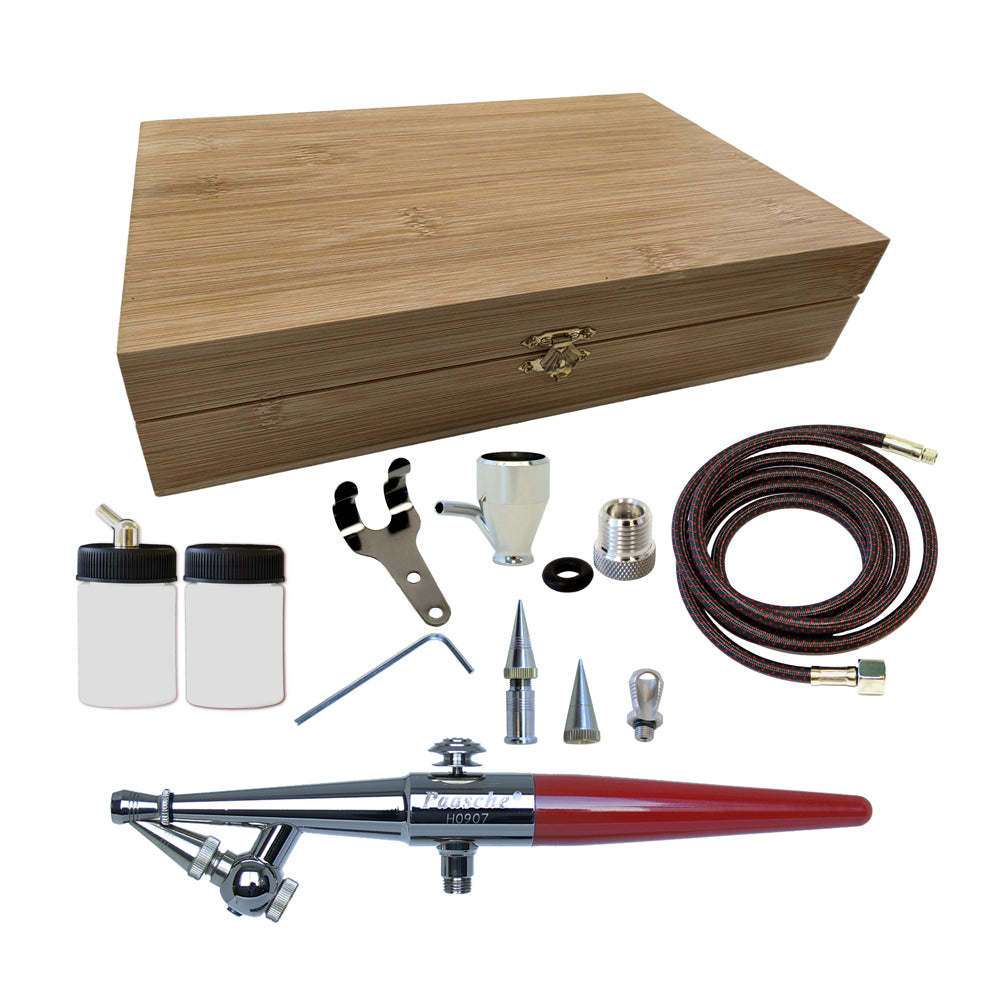

H-3AS Includes:

H#3 airbrush

Wood Case

Size 1 and 5 spray heads

1/4 oz. metal cup

1 oz. bottle assembly

1 oz. storage bottle

1/8" BSP adapter

Hanger

Wrench

6-foot braided air hose

Manual

Features:

• Made in the USA
• Wood Case
• Three head sizes for any application
• Highly polished and hardened stainless steel needles for long life and reduced clogging
• Solvent-proof needle packing for use with water- and solvent-based paints
• Durable chrome-plated body

Specifications:

Part Number: H-3AS

Type: Single Action, External Mix, Siphon Feed

Head Sizes: Size 1 (0.45 mm), Size 3 (0.65 mm), Size 5 (1.05 mm)

Fluid Packing: Compatible with solvent- or water-based fluids

Air Volume: 20 PSI @ 0.5 CFM

Air Pressure: 20–75 PSI

Air Inlet: ¼"-20 thread (Paasche thread) & 1/8" BSP adapter

Bottle Size: Compatible with 1/4 oz. to 8 oz. bottles

Spray Pattern: 1/32" to 1-1/2"

Weight: 1.1 lbs.

Finish: Chrome-plated body
